8-84 Section 8-17 - Replacement of CPS2 (R2.x.x or later)
6.) Draw CPS2 out of the NEST Frame.
8-17-4 Installation Procedure
1.) Parts to be installed in reverse order of removal.
8-17-5 Functional Check
Refer to Section 4-4 for Functional Diag Test List.

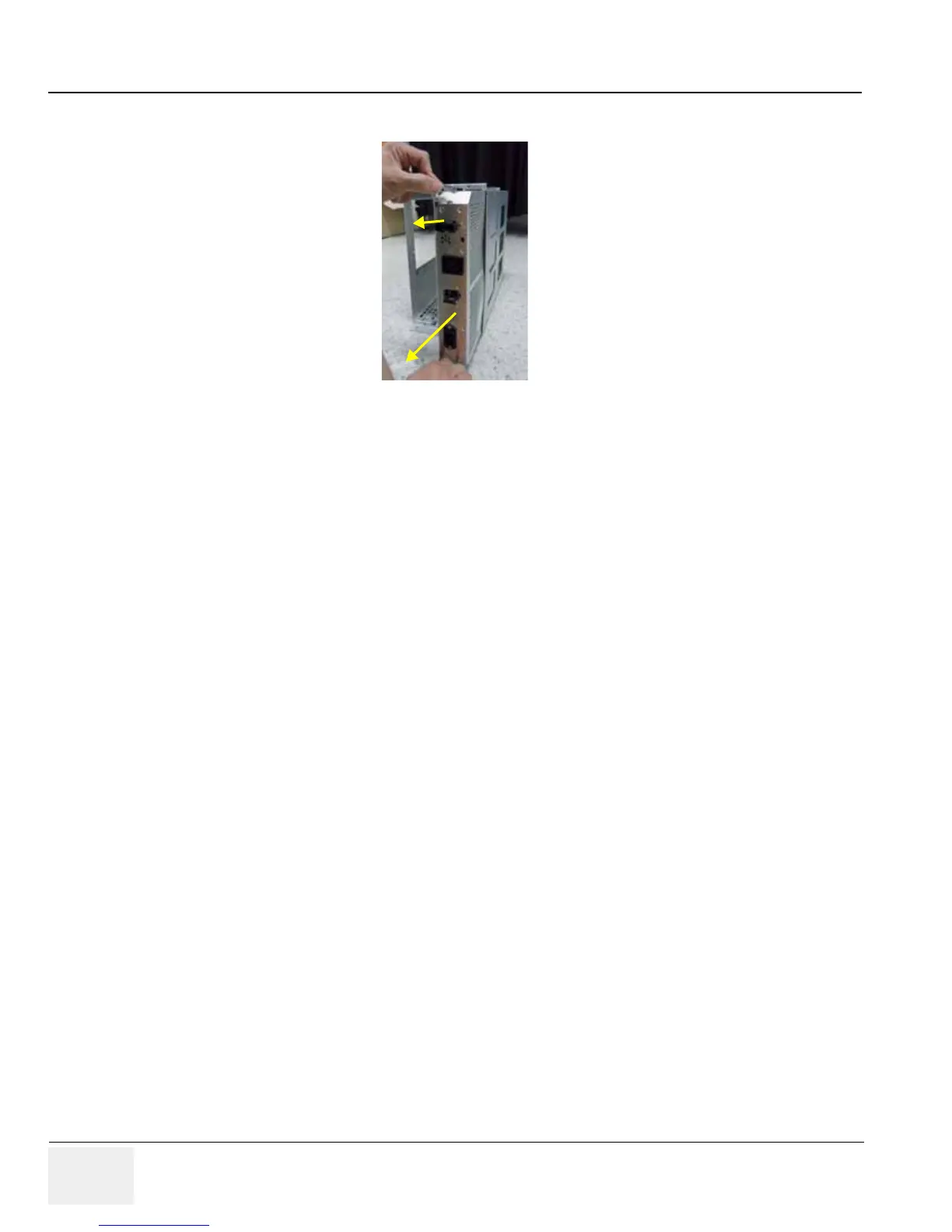

Figure 8-86 Separating CPS/CPS2 Assy
To Next Page
