GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-79
8-16-5 Installation Procedure
8-16-5-1 Installation Procedure - PIL, GBF128/64, GFS/GFS-T6, CPS/CPS2
1.) Parts to be installed in reverse order of removal.

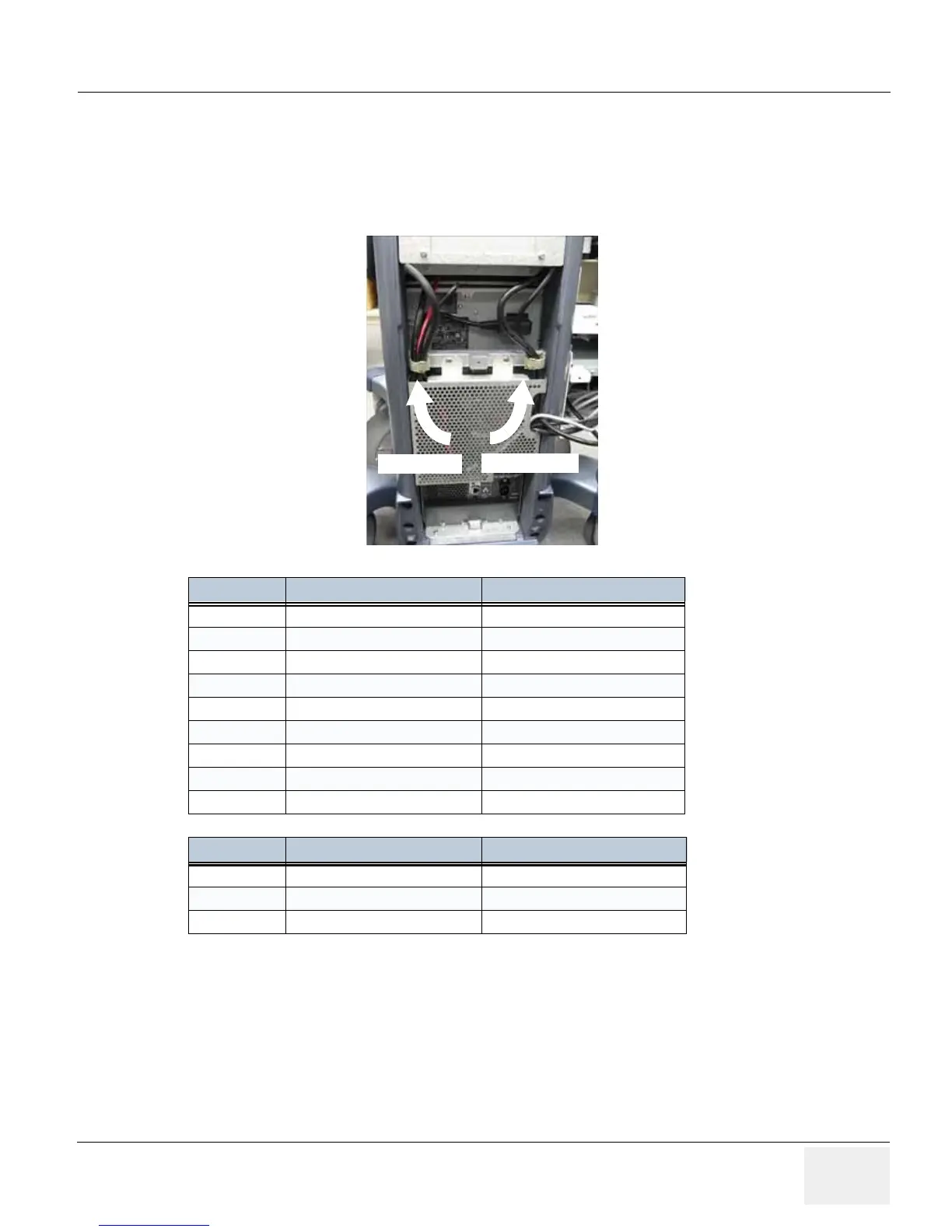

NOTE: Cables are designed to be routed as follows
8-16-6 Functional Check - PIL, GBF128/64, GFS/GFS-T6, CPS/CPS2
Refer to Section 4-4 for Functional Diag Test List
(Signals) Description Duct Designation
LCD
To main LCD
Right Side
OPIO
To OPIO power and signal
Right Side
USB 2.0
For Color/BW Printers, VNAV
n/a
SPK
Speaker
Left Side
DVD
SATA Cable to DVD Unit
Left Side
USB
Customer Use
n/a
HDMI
External Display
n/a
RJ45 LAN Jack
InSite Connection
n/a
Mini Jack
External Speaker output
n/a
(Power) Description
DC Power
x2 for DVD & VNAV
Left Side
AC Outlet
For peripheral
To cabinet
AC Inlet
AC Inlet
Fixed with bracket - routed outside
To Next Page
