Replacement Rear Cover
8-9-1 Manpower
1 person, 15 min.
8-9-2 Tools
Phillips Driver.
8-9-3 Removal Procedure

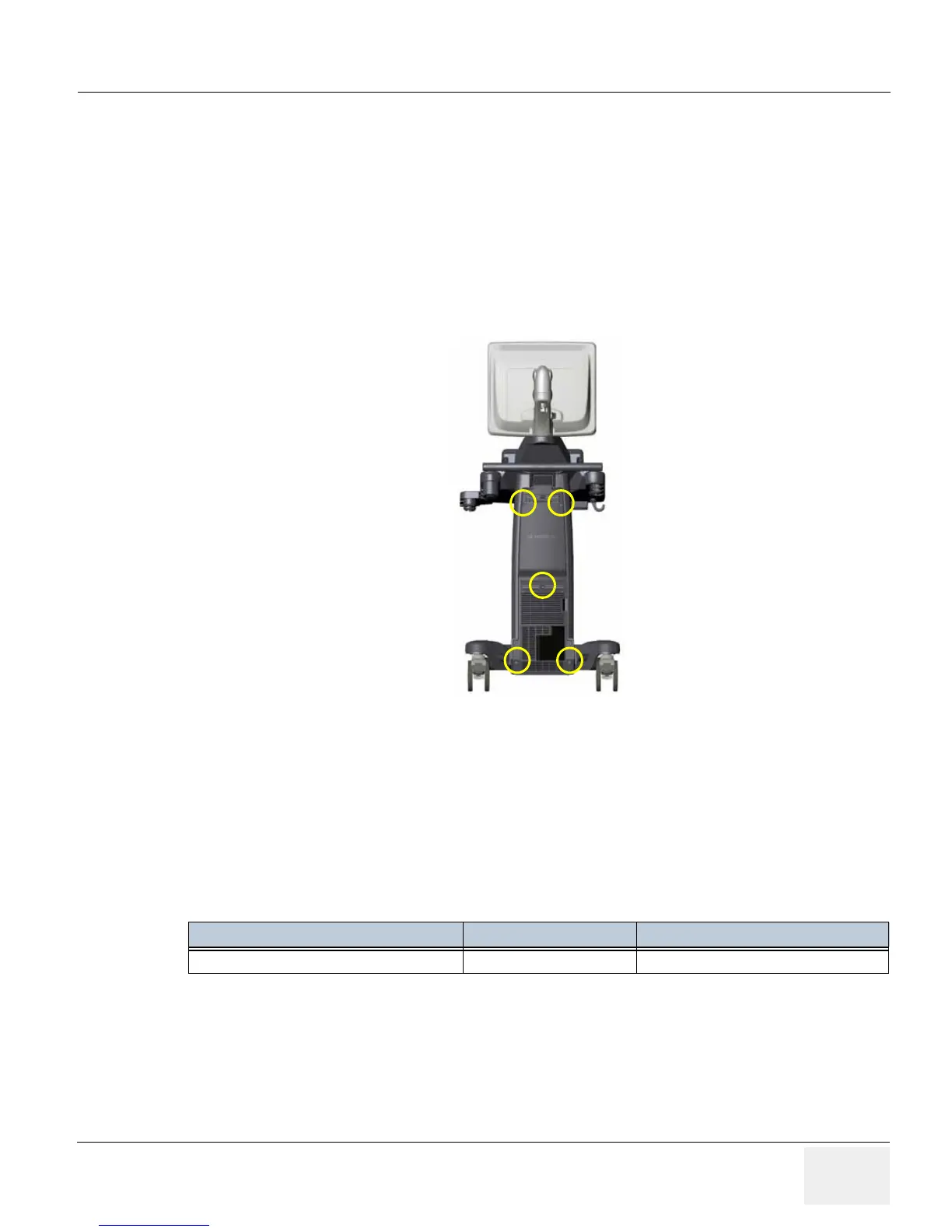

Figure 8-27 Rear Cover screw
1.) Remove 5 screws.
8-9-4 Installation Procedure
1.) Cover to be installed in reverse order of removal.
8-9-5 Functional Check
Visual inspection only.
Test Refer to Note
System Exterior Visual Check Section 4-3-1
