GE HEALTHCARERAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
5-2 Section 5-2 - General Information
Section 5-2
General Information
LOGIQ™ S7 Expert/Pro is a digital beamforming curved-, linear- and phased array ultrasound imaging
system. The system supports various operating mode such as
• B-Mode, M-Mode, Color Flow (CFM)
• Power Doppler Imaging (PDI), PW Doppler, CW Doppler
• Volume Mode (3D)
Refer to Basic User Manual for full range of operating mode.
5-2-1 System Exterior

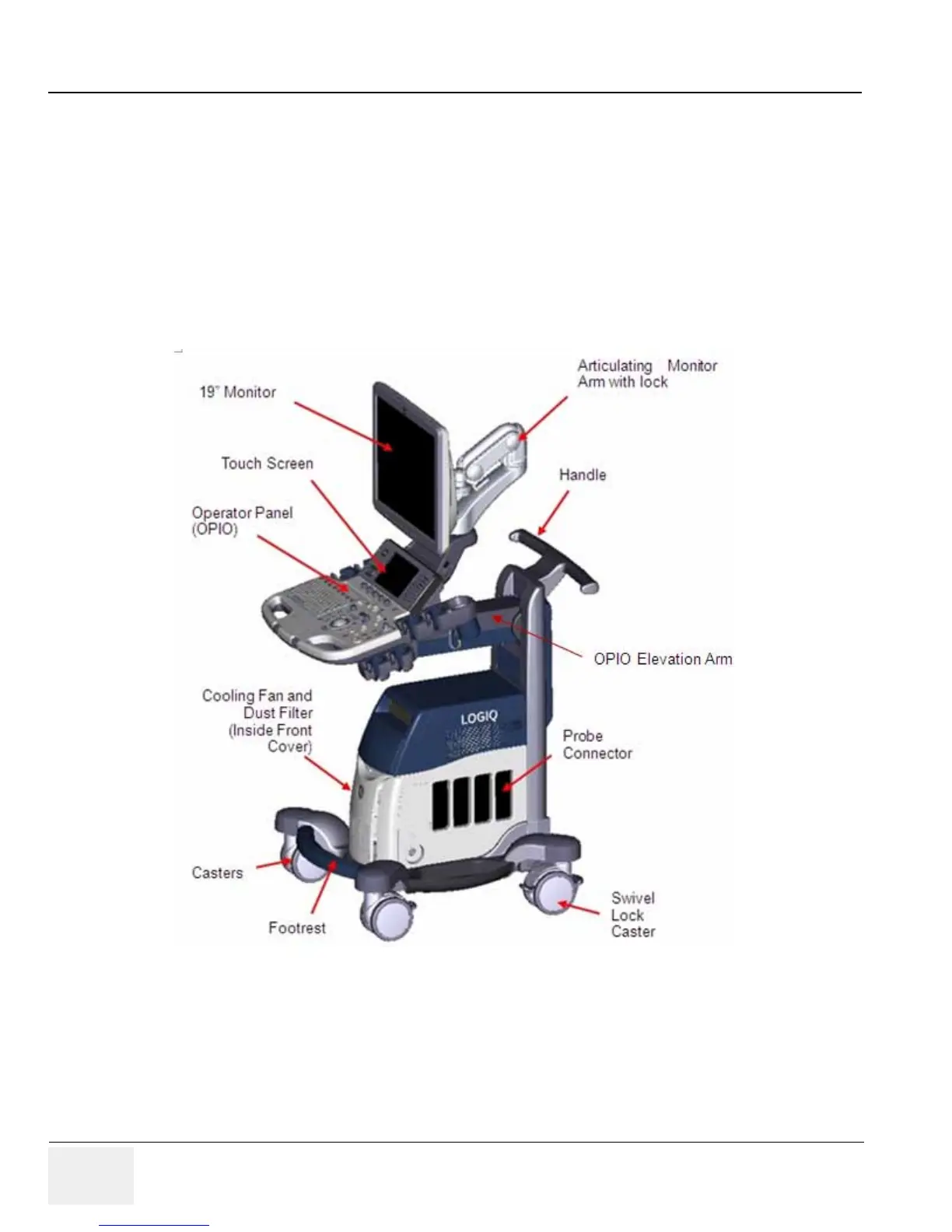

Figure 5-1 System Exterior
