GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-93
5.) Unscrew four screws to separate DVR from the GFS..

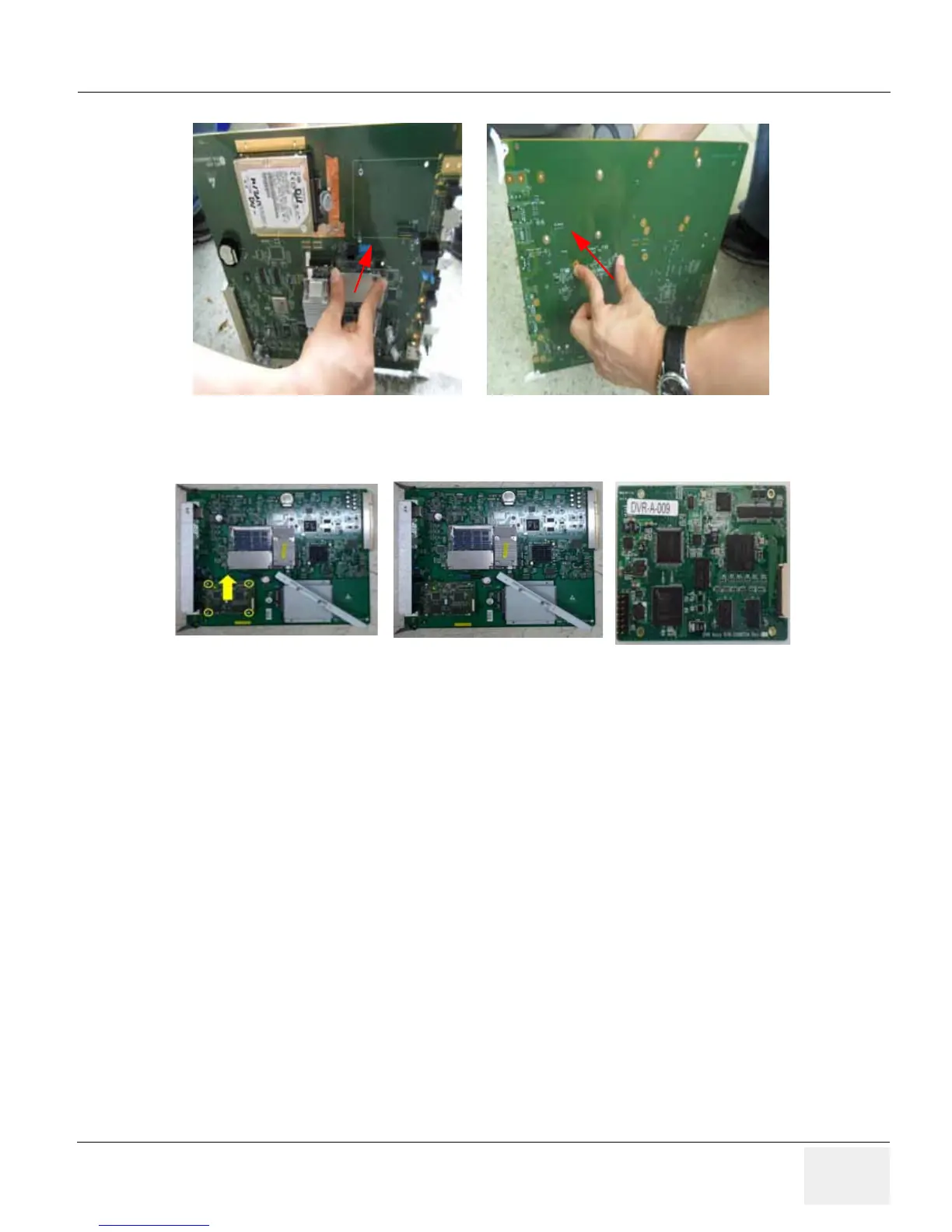

Figure 8-100 Push the SOM in both side of GFS Assy
Figure 8-101 Drawing up the DVR
