GE LOGIQ S7 Pro - Page 107

GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-45

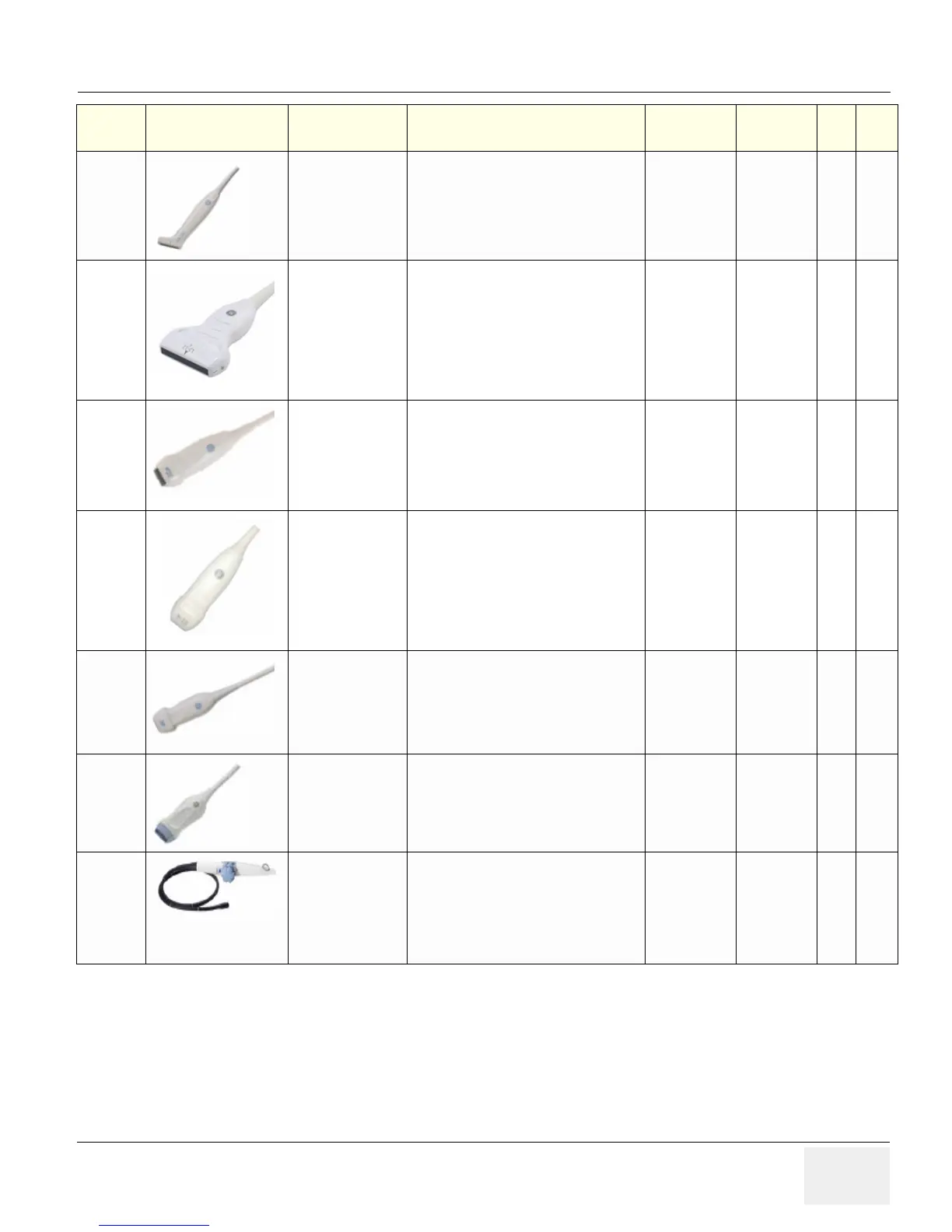

L8-18i-D Small Parts,
Vascular,
Neonatal,
Pediatrics,
Intraoperative
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Virtual Convex, CrossXBeam,
LOGIQView, ATO/ASO, SRI-HD,
Advanced 3D, B Steer+
5410799 Linear
1 1
L3-12-D Abdomen,
Vascular
(No transcranial),
Small Parts,
Pediatric, Neonatal
B, CHI, CF, PDI, M, PW, B-Flow, B-Flow
Color, Elastography, Virtual Convex,
CrossXBeam, LOGIQView, ATO/ASO,
SRI-HD, Advanced3D, Biopsy, B Steer+
5482856 Linear
11
3Sp-D Cardiac, Abdomen,
Transcranial
B, CHI, CF, M, MCF, PW, CW, TVI, TVD,
Virtual Convex, LOGIQView, ATO/ASO,
Stress Echo, SRI-HD, Advanced 3D,
Biopsy
GE-3PAX4 Sector
11
S1-4-D Cardiac,
Transcranial
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, LOGIQView, ATO/
ASO, Stress Echo, SRI-HD,
Advanced3D, Biopsy
5498609 Sector
11
6S-D Cardiac,
Pediatrics,
Neonatal
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, LOGIQView, ATO/
ASO, SRI-HD, Advanced3D
5499318 Sector
1 1
S4-10-D Pediatrics,
Neonatal,
Abdomen
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, LOGIQView, ATO/
ASO, SRI-HD, Advanced 3D
5394804 Sector
1 1
6Tc-RS Cardiac
(Transesophageal)
B, CHI, CF, PDI, M, MCF, PW, CW, TVI,
TVD, Virtual Convex, ATO/ASO, SRI-HD
Note: Need DLP2RS adapter to connect.
Note: 6Tc-RS probe requires special
handling. Refer to the TEE Probe User
Manual enclosed with 6Tc-RS probe.
KN100104 TEE
1 1
Part
Name
Illustration Application Feature
Part
Number
Probe
Type
Qty FRU
