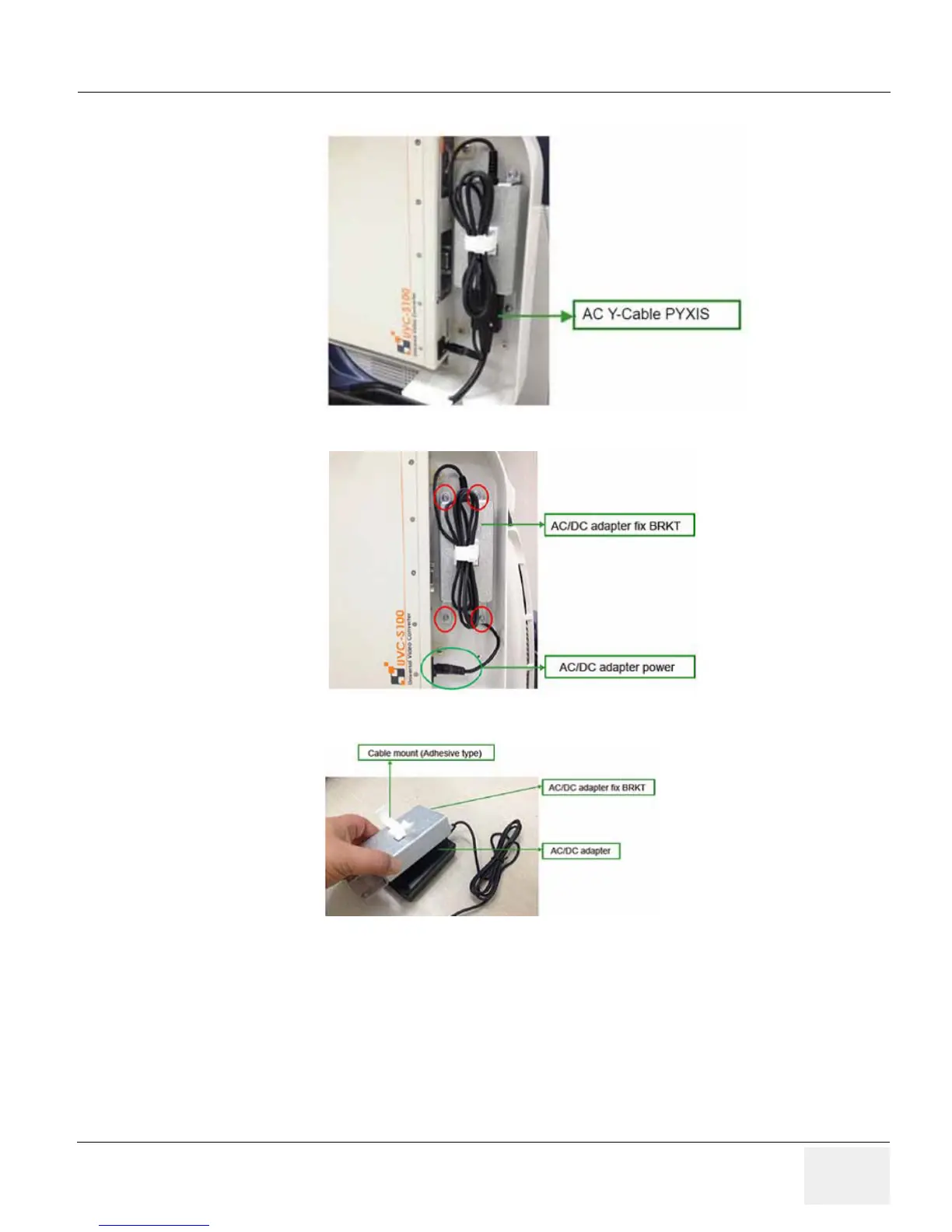

4.) Remove the AC Y-CABLE PYXIS power connector from adaptor.
5.) Remove the power connector from UVC module and remove the AC/DC adaptor FIX bracket
with 4 screws.
6.) Remove AC/DC adaptor from cable mount and remove the AC/DC adaptor FIX BRKT and AC/
DC adaptor.
