GE HEALTHCAREDRAFT LOGIQ™ S7 EXPERT/PRO
DIRECTION 5460683, REVISION 3 DRAFT (JUNE 25, 2014) SERVICE MANUAL
Chapter 3 - Setup Instructions 3-17
3-6-4 Connecting the Secondary “Patient” LCD Monitor (cont’d)

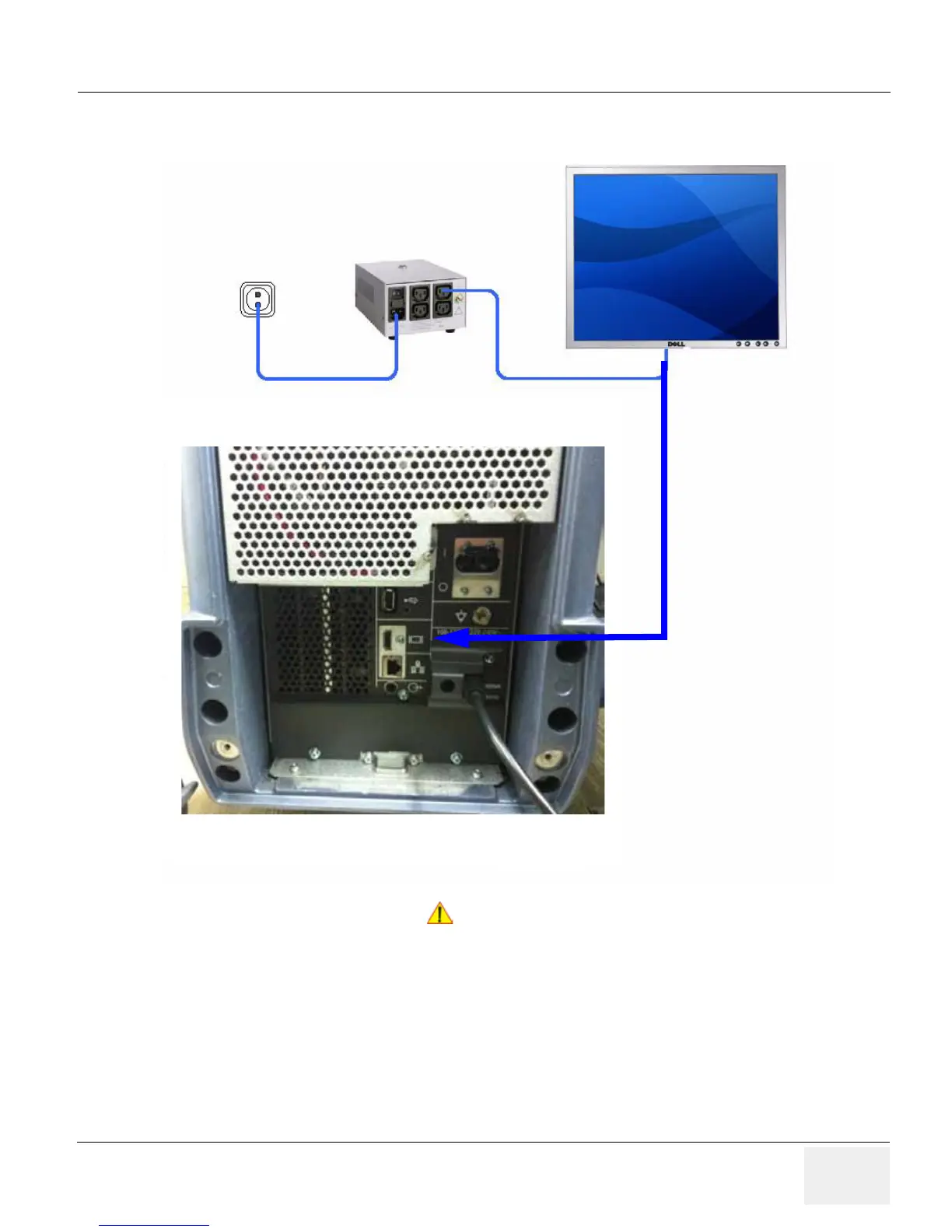

Figure 3-8 Connection Scheme - Secondary LCD Monitor
HDMI to DVI / HDMI to HDMI cable
connected to the
rear side of the
2nd Monitor
Secondary Monitor
appropriate
Transformer
A Secondary “Patient” Monitor MUST NEVER
be connected to the LOGIQ™ S7 ultrasound systems mains
supply directly!
Always connect it to an appropriate Isolation Transformer
To Next Page
