iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
101
4.4.3 Board Based Data
Selecting the Board Based Data program group returns the sub-menu displayed in the left frame as shown in
the following figure.

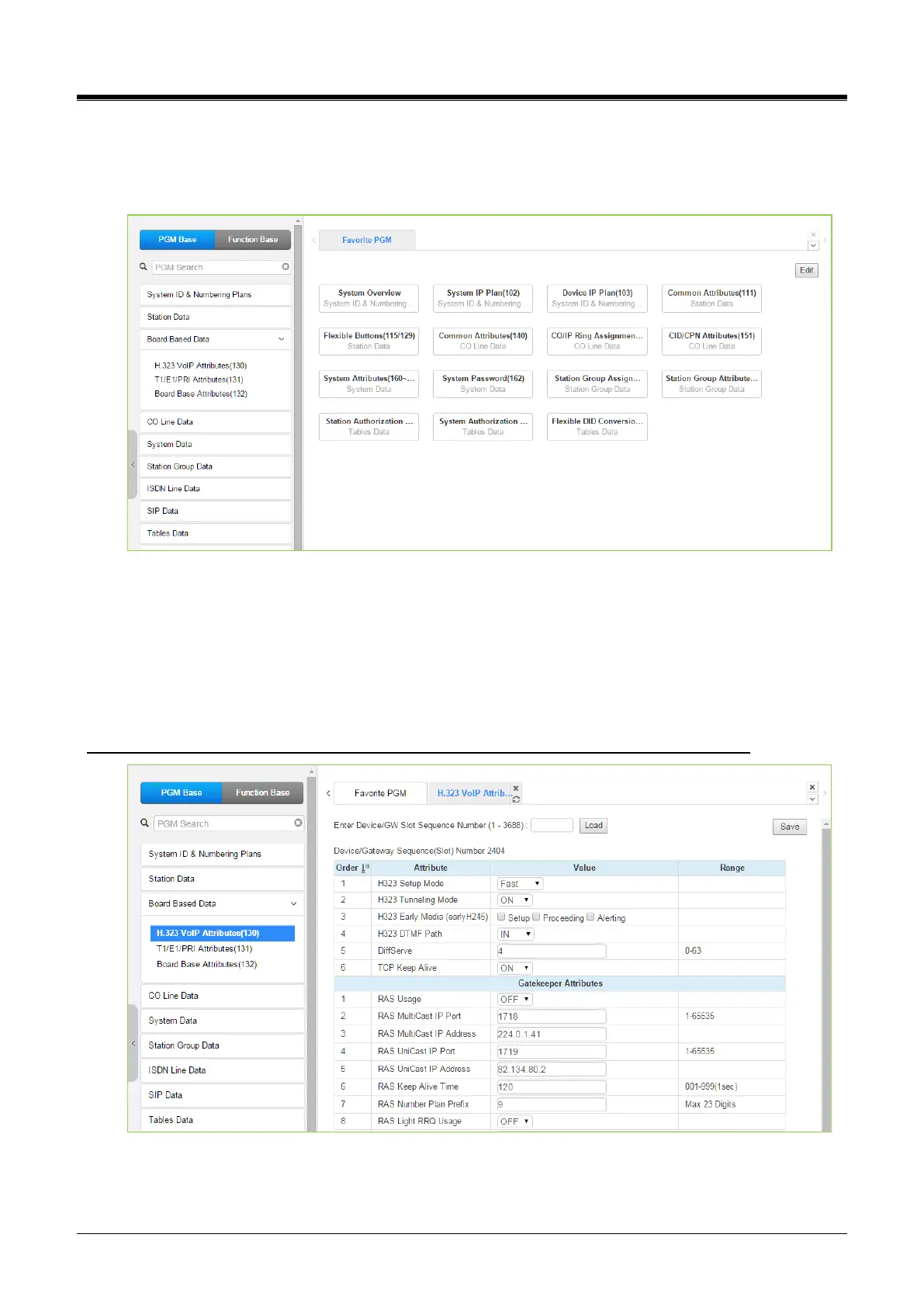

Figure 4.4.3-1 Board Based Data Main Page
4.4.3.1 H.323 VoIP Attributes - PGM 130
Selecting H.323 VoIP Attributes returns the H.323 VoIP Attributes data input page. Enter the VoIP gateway
Sequence number (refer to ‘Device IP Plan’ if you want to find the sequence number) and click[Load] to enter
VoIP data. Click the [Save] button after changing Value.
Enter Device/GW slot sequence number: eMG80/100: 1-300 / eMG800: 1-2890 / UCP:1-3688
Figure 4.4.3.1-1 H.323 VoIP Attributes
