iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
273
4.4.8.7 SIP Phone Attributes - PGM 211
Selecting SIP Phone Attributes will display the SIP Phone input page. Enter a valid SIP Station Number or
range, and click [Load] to view the SIP Phone Attributes for the first Station Number in the range. Enter new
data and click [Save]to modify the attributes for a Station or range.

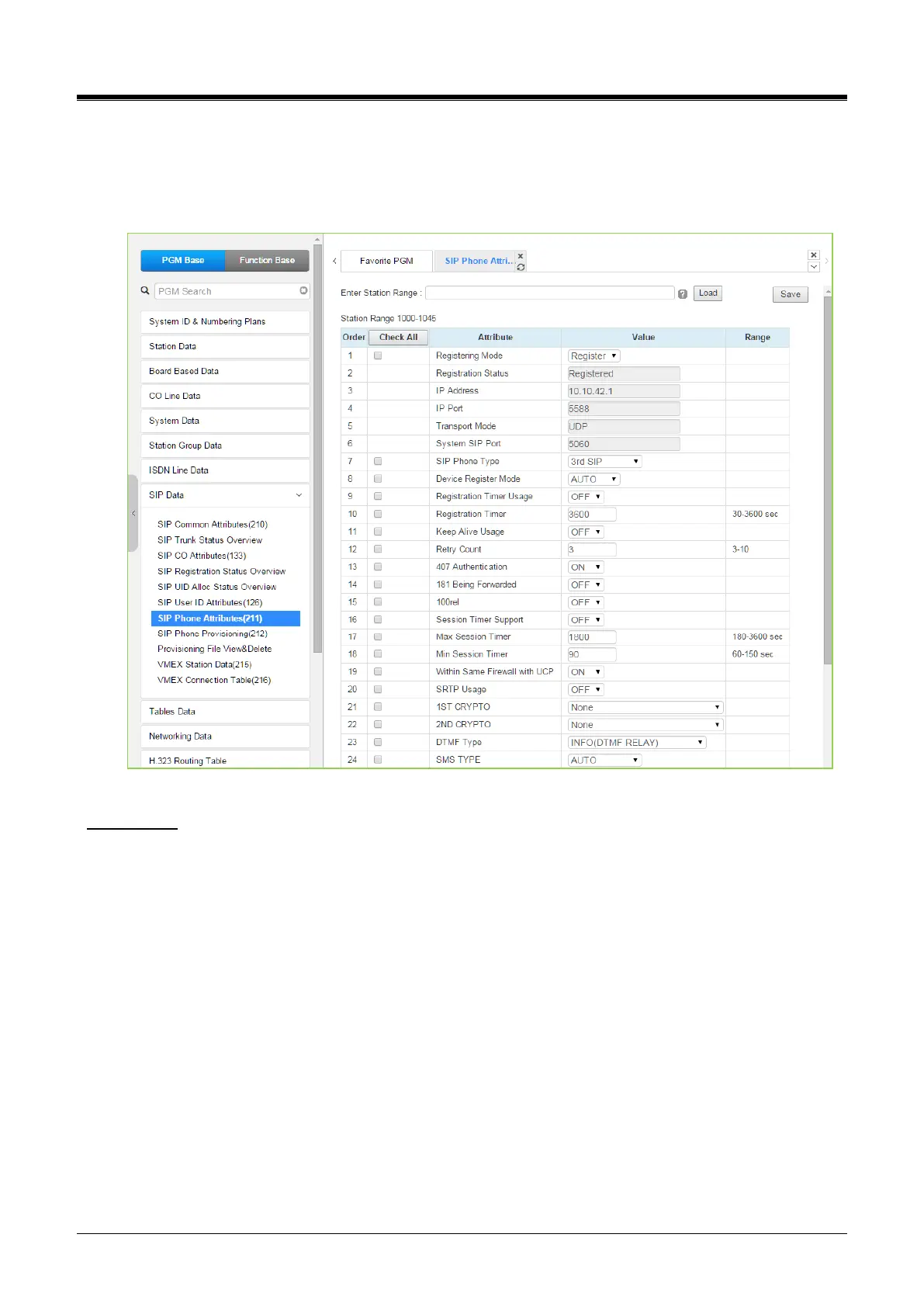

Figure 4.4.8.7-1 SIP Phone Attributes
Registration
For new registration of SIP station, input ID/PWD & Desired Station Number in PGM 443 of Station User Login
Table. The SIP Phone Attributes are for Stations that are already registered to the system.
Register Mode - Register/ Manual: Set Registration Time Out or Not
Registration Status: View connection status (Disconnected or Not) for a station
IP Address: SIP Phone‘s IP address
IP Port: SIP Phone‘s IP Port Number
Transport Mode: SIP signaling method
SIP Phone Type: Automatically Assigned by System
Device NAT Usage: Automatic Detection
Registration Timer Usage: OFF – Assign (Re-) Registration Timer by Provisioning (212), ON – Assign
(Re-) Registration Timer by SIP Phone Attributes (211).
Registration Timer: recommended more than 10 minutes.
407 Authentication: Authentication of Registration (and Call Setup). To implement authentication, user
login Password should be available in PGM 443 for the Station.
