4.4.5.40 Access Control List – PGM 255
Access Control List will display the access control attributes data entry page. Enter a valid index range and
click [Load] to enter ACL data. Click the [Save] button after changing Value.

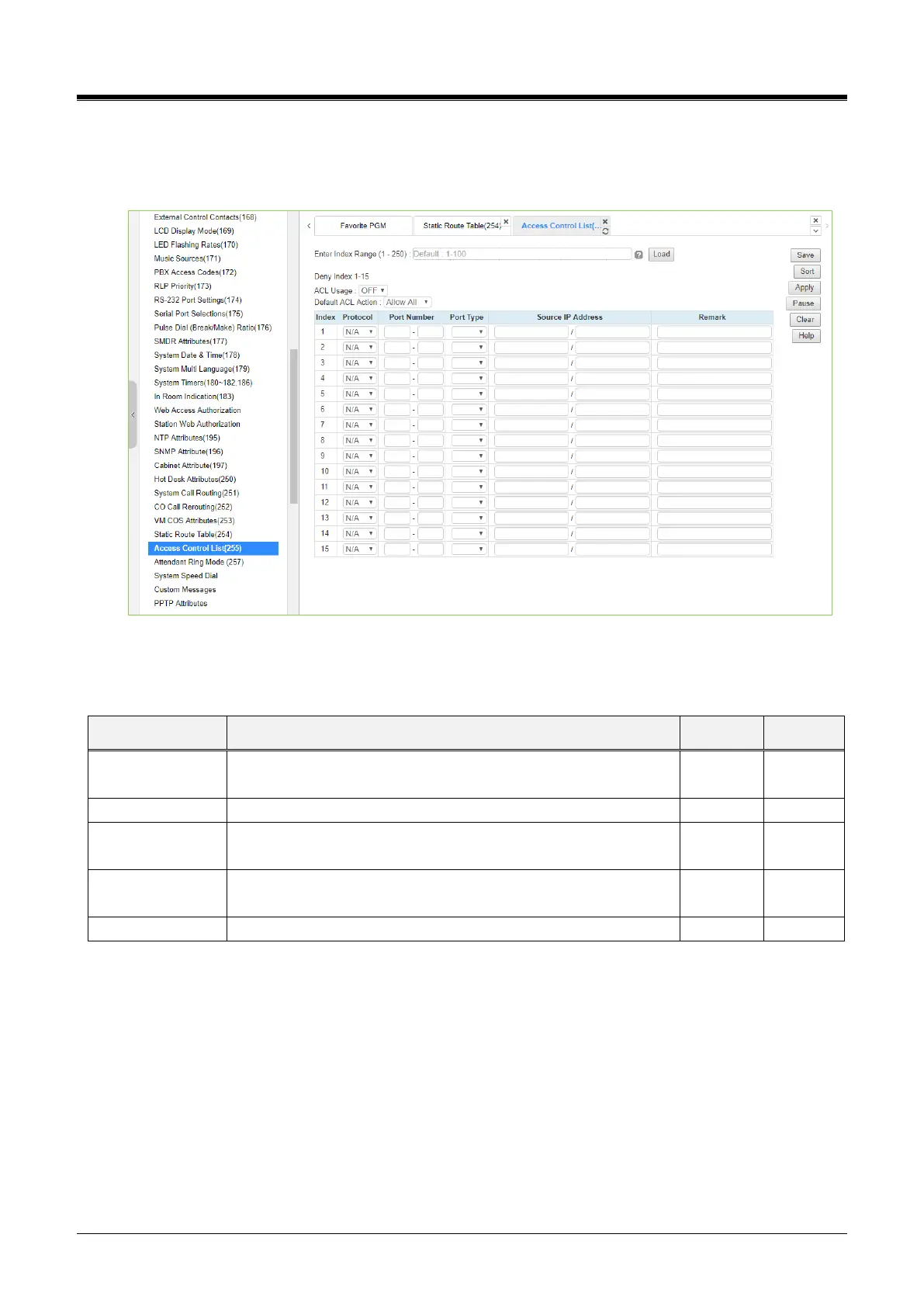

Figure 4.4.5.40-1 Access Control List
Access Control determines the Source IP addresses that can access the system for specific protocols.
Table 4.4.5.40-1 ACCESS CONTROL LIST
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Protocol
This field defines the accessing protocol type.
N/A, ALL, TCP, UDP, ICMP
Refer to
description
N/A
Port number
This field further defines the protocol TCP/IP port number.
Port type
The port number can be configured as either the source or
destination port number.
DEST/
SRC
Source IP address
The allowed source IP address and netmask allowed this field
defines access.
Remark
This is a general remark field.
