4.4.12.6 T-NET Music/Alarm -PGM 335 ~ 336
Selecting T-NET Music/Alarm will display the data entry page. Enter the T-NET range from the T-Net LM
Attributes, then click [Load] to modify the data. Click the [Save] button after changing Value.
Enter T-NET Range: eMG80/100: 1-15 / eMG800: 1-32 / UCP: 1-100

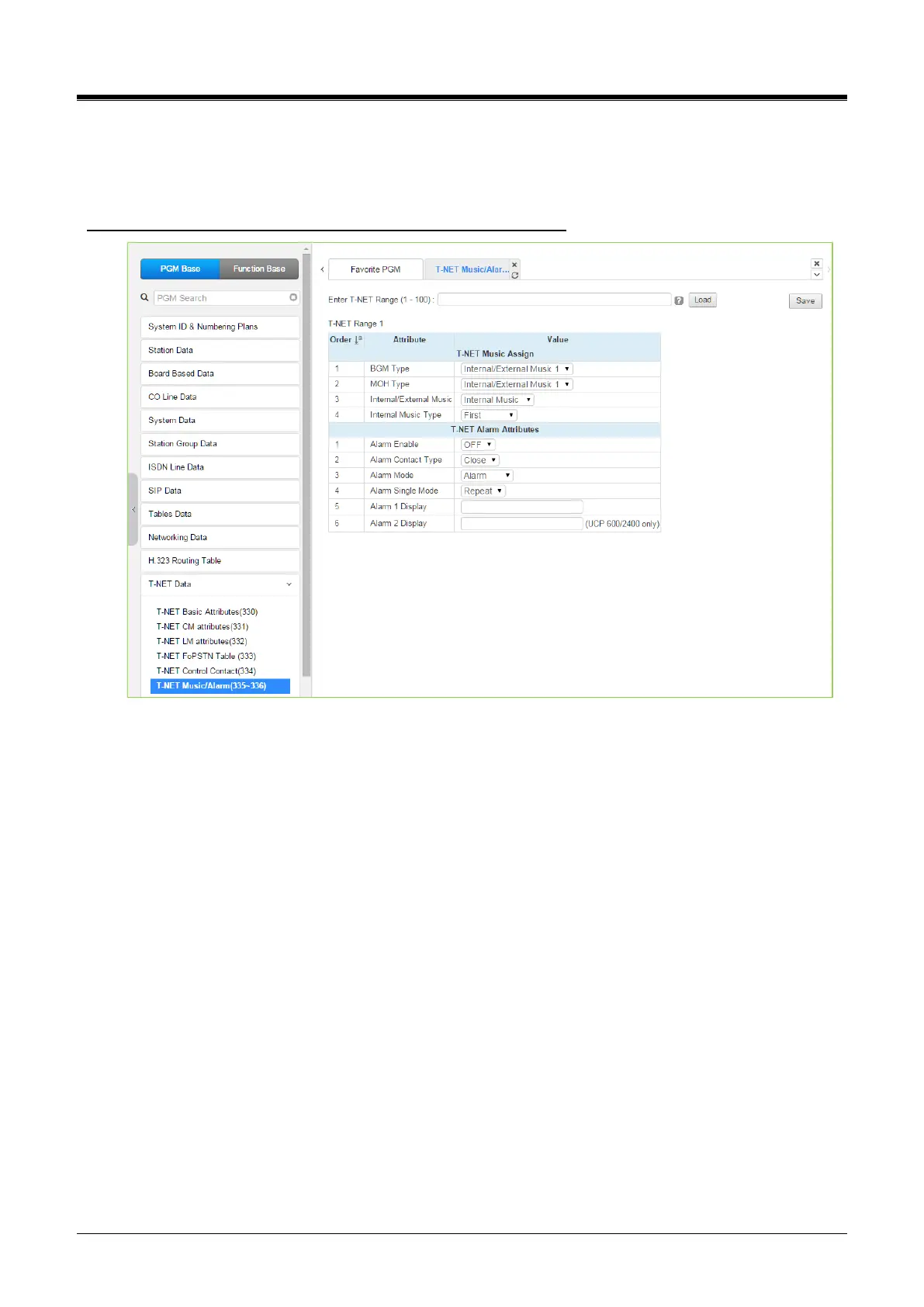

Figure 4.4.12.6-1 T-NET Music/Alarm
To minimize WAN traffic, the CM does not provide BGM/MOH to an LM. The LM employs local BGM and MOH
facilities to reduce traffic load on the WAN and IP channel processors. The LM uses IP Multicast for local BGM
and MOH transport. In addition, the Alarm contacts of the LM can be defined for use as a local alarm or
doorbell.
When alarm port 1 of the LM is activated, the string of {Alarm 1 Display} is displayed in assigned stations.
When alarm port 2 of the LM is activated, the string of {Alarm 2 Display} is displayed in assigned stations(if LM
is UCP600/2400).
