4.4.13.7 Zone RTP Relay Group – PGM 440
Selecting the Zone RTP Relay Group returns the RTP Relay ON/OFF data input page. Enter the desired Zone
and Group numbers and click the [Load]button to assign Zone characteristics. Click the [Save] button after
changing Value.

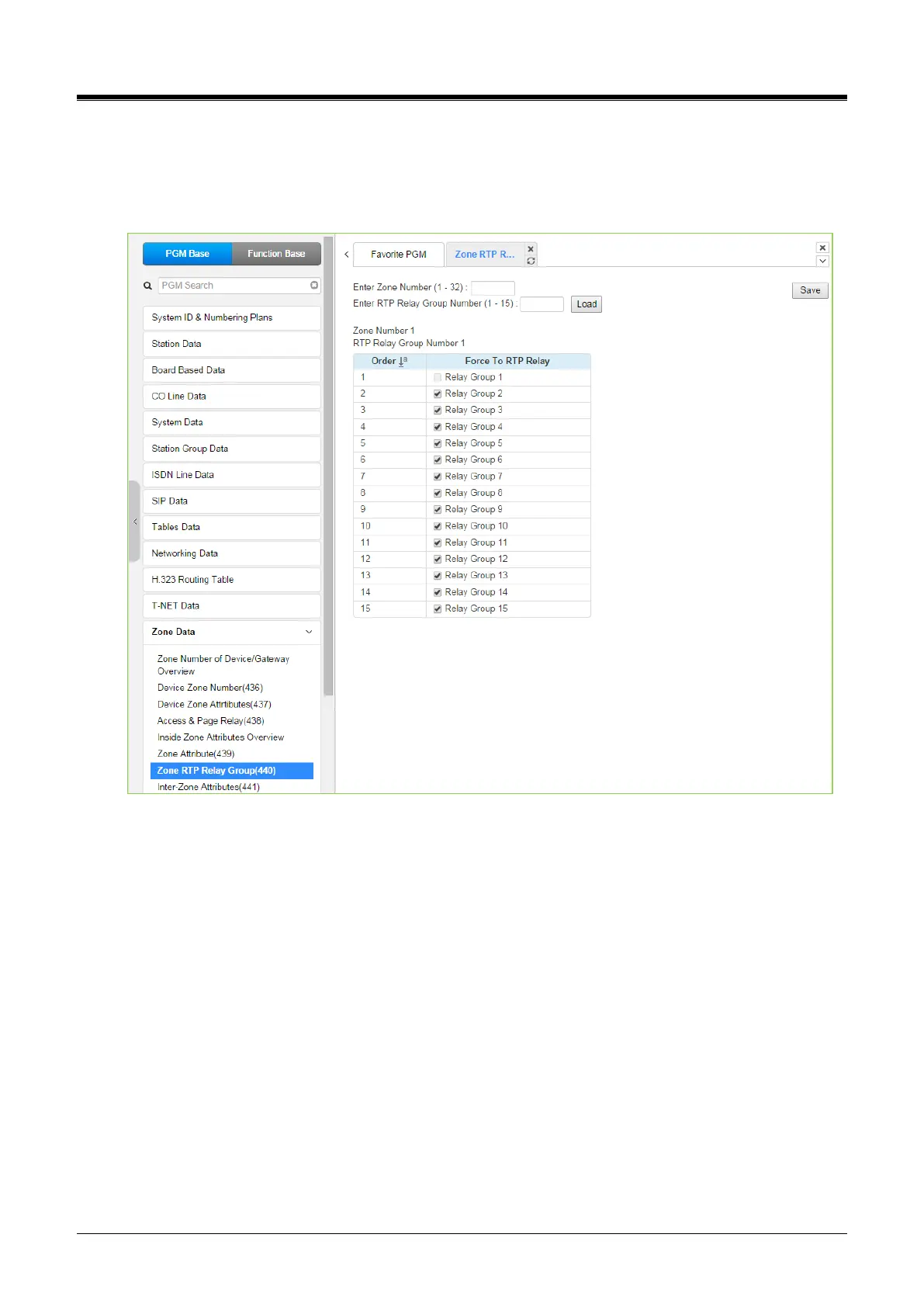

Figure 4.4.13.7-1 Zone RTP Packet Relay Groups
While it is strongly recommended that a Zone only have a single RTP Relay Group, up to 15 Groups can be
assigned to a Zone. Devices in an RTP Relay Group should have common requirements for packet relay use.
In some situations, it may be necessary to implement packet relay to groups in a Zone. Note that assignments
here are ignored when “if Need” is assigned as the RTP Relay Rule in the Zone Attributes.
