4.4.5.16 External Control Contacts - PGM 168
Selecting External Control Contacts will display the External Control Contact data entry page. Click the [Save]
button after changing Value.
The number of External Control Contact: 2 (eMG80/100), 2 (eMG800), 4 (eMG100/UCP)
The vUCP is not available for this feature.

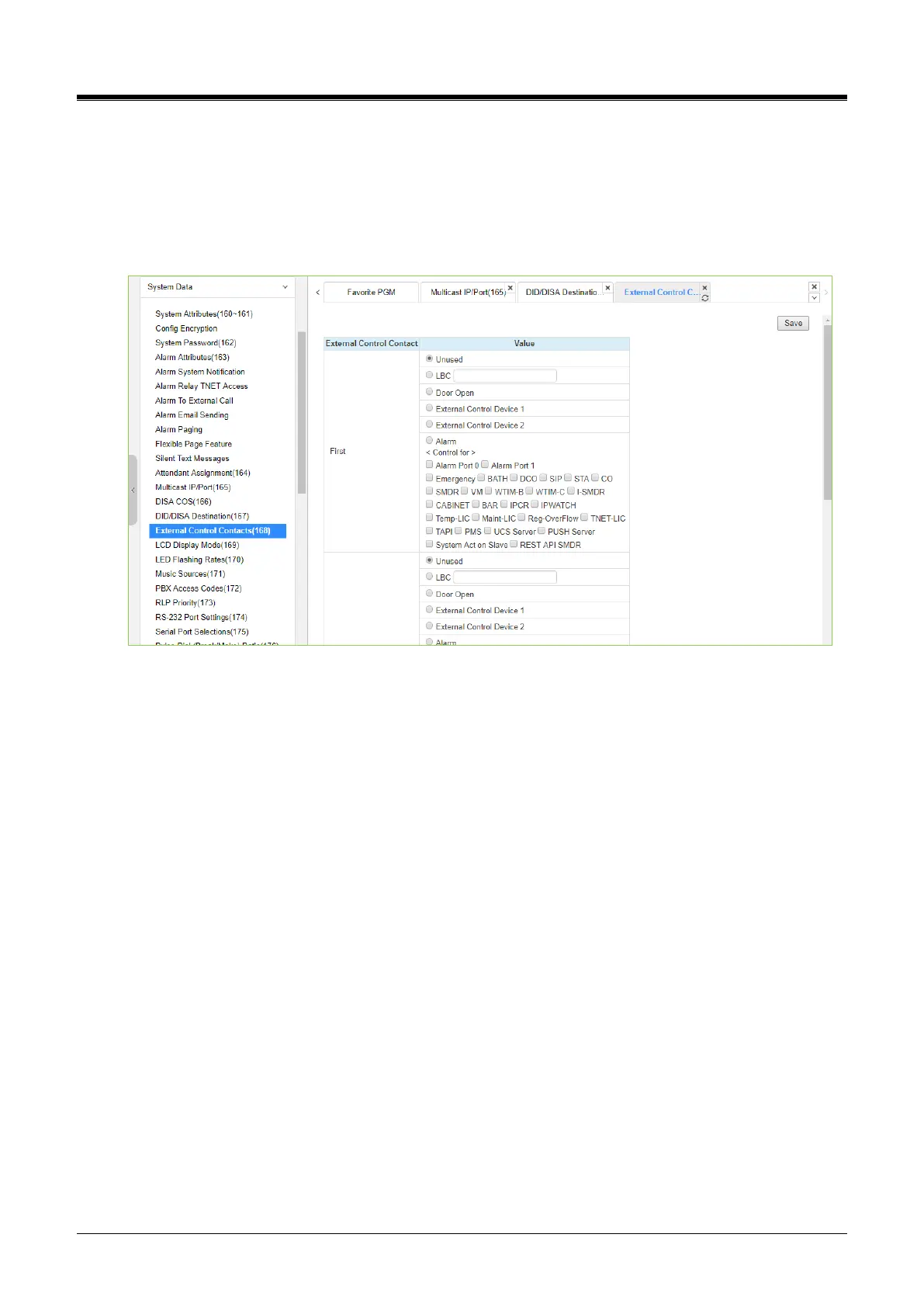

Figure 4.4.5.16-1 External Control Contact
The system includes a programmable contact, which can be used to control external devices. Refer to the
table ‘System capacity’ for a number of available contacts. Each contact is assigned to activate under one of
several conditions. As a Loud Bell Contact (LBC), the contact will activate when the assigned station or group
receives an external call. For LBC, when the system is in the Night or Timed Ring mode, the contact will
activate for incoming UNA (Universal Night Answer) calls and will ignore any station assignment. The contact
may alternatively activate as a Door Lock Release contact when External Page Zone 1 is accessed or when
External Page Zone 2 is accessed.
In the case of setting Alarm, you can select the desired alarm type for each contact.
To Next Page
