iPECS UCP600 - T1;E1;PRI Attributes - PGM 131

iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
104
4.4.3.2 T1/E1/PRI Attributes - PGM 131
Selecting T1/E1/PRI Attributes returns the T1/E1/PRI Attributes data input page.
Enter the Device Sequence number (refer to ‘Device IP Plan’ if you want to find the sequence number) and
click [Load] to enter T1/E1/PRI data. Click the [Save] button after changing Value.
Enter Device/GW slot sequence number:eMG80/100: 1-300 / eMG800: 1-2890 / UCP:1-3688

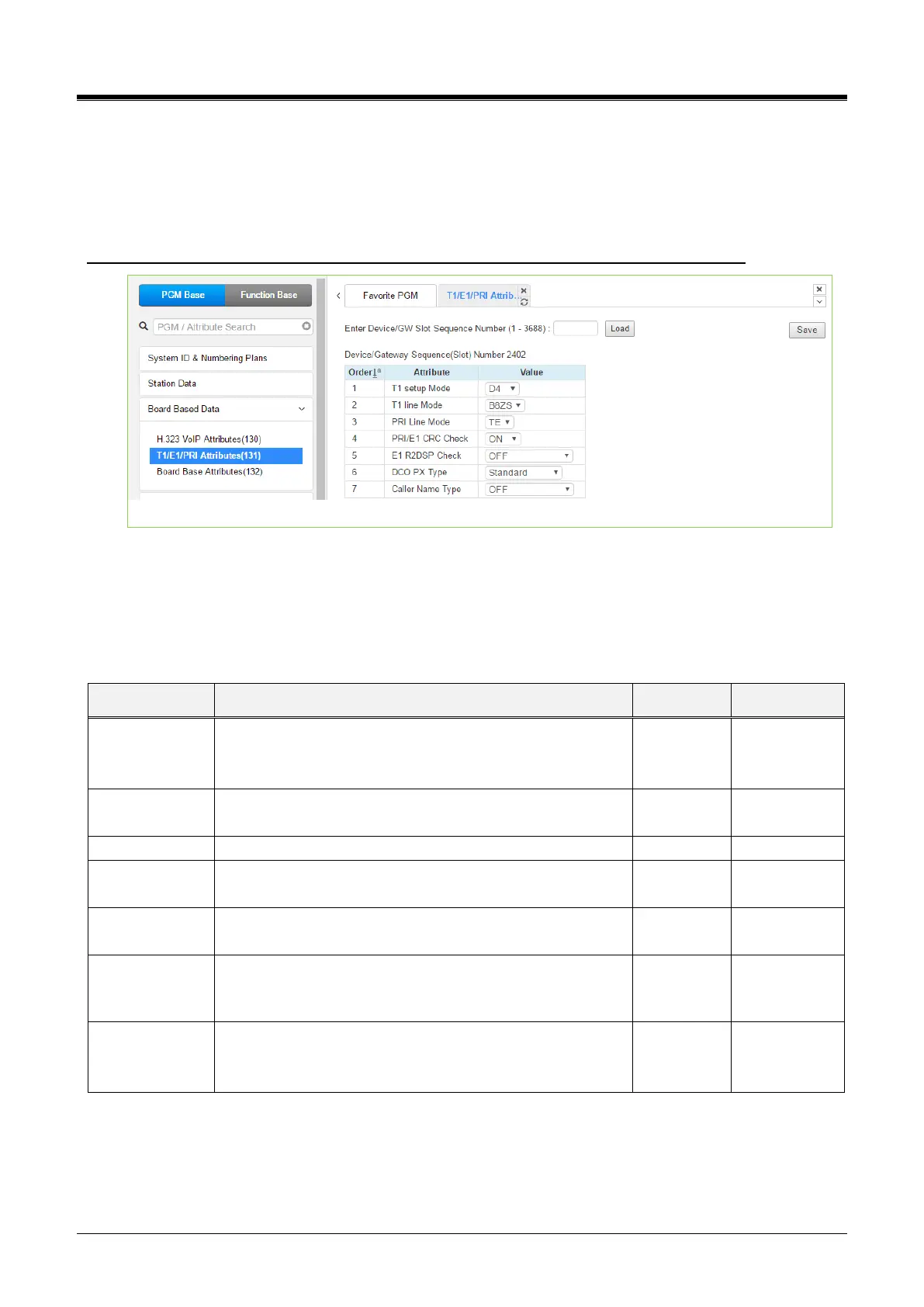

Figure 4.4.3.2-1 T1/E1/PRI Attributes
Each T1/E1/PRI module can be assigned for various attributes of the interface.
The T1 interface framing and line coding can be selected and, for the PRI, TE, or NT operation, can be
selected. Refer to the following table for a description of the features and the input required.
Table 4.4.3.2-1 T1/E1/PRI ATTRIBUTES
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
T1 Setup Mode
Select T1 Setup mode D4 frame: Using In-Band Control
Protocol.
ESF: Using Datalink Message.
ESF/
D4
D4
T1 Line Mode
Select T1 line coding (AMI/B8ZS).
AMI/
B8ZS
B8ZS
PRI Line Mode
Select TE/NT Mode.
TE/NT
TE
PRI /E1 CRC
Check
Enable CRC (Cyclical Redundancy Check).
OFF
ON
OFF
E1 R2DSP check
Used for R2-E1 Device or E1 Device.
OFF/
ON
OFF
DCO PX Type
Reserved for future usage for R2 E1 Device.
S1240, TDX1B, STANDARD, CONGES_DIS
Refer to
description
STANDARD
Caller Name
Type
(the USA only) If the caller has a name, the Caller Name is
sent to the network according to the option
Facility message, Display message, OFF
Refer to
description
OFF
