4.4.5.6 Alarm Relay TNET Access
Selecting Alarm – External Relay Control will display the following page. Click the [Save] button after changing
Value. The online license selection menu can use at the vUCP System only.

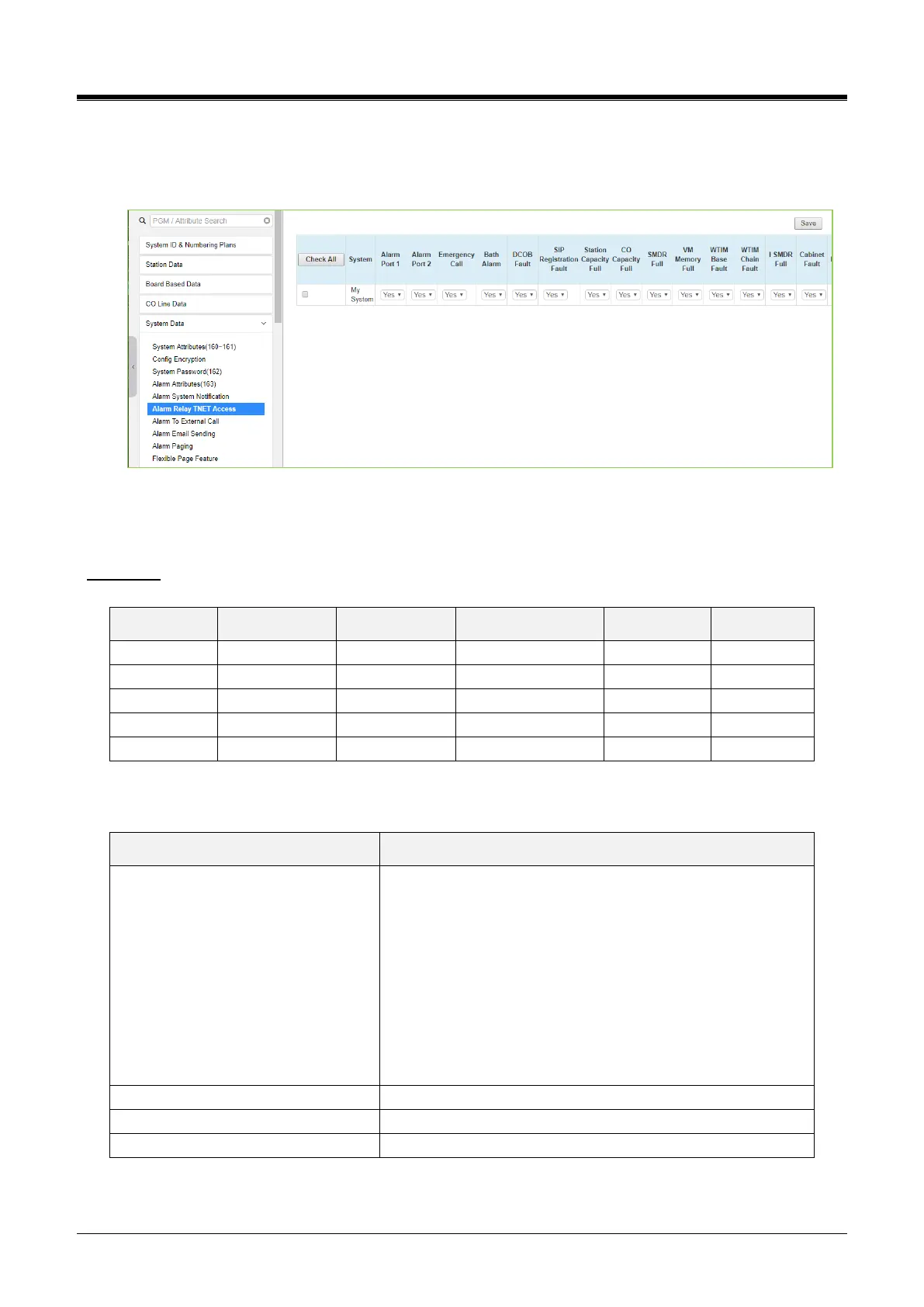

Figure 4.4.5.6-1 Alarm Relay TNET Access
The system can control an external circuit connected to the relay by associating an alarm type with an external
relay port. The association will create hardwired signaling externally when an alarm condition is initiated.
Operation
1) Assign Target system of T-NET including my system.<Alarm – External Relay Control>
Alarm Port1
Alarm Port2
Emergency Call
DCO Fault
. . .
My System
On/Off
On/Off
On/Off
On/Off
On/Off
CM
On/Off
On/Off
On/Off
On/Off
On/Off
LM 1
On/Off
On/Off
On/Off
On/Off
On/Off
LM 2
. . .
LM 3
2) Set usage to ‘Alarm’ for external control contact port(s) and mark alarm types for
association.<External Control Contacts (168)><T-NET Control Contact (334)>
External Control Contact
Usage
First
(x) Unused
(x) LBC
(x) Door Open
(x) External Control Device 1
(x) External Control Device 2
(O) Alarm
[Mark]
Alarm Port 1, Alarm Port 2
911, DCO, SIO, STA, CO,STA, CO, …
Second
. . .
Third
. . .
Fourth
. . .
