4.4.12.2 T-NET CM Attributes -PGM 331
Selecting T-Net CM Attributes will display the data entry page. Click the [Save] button after changing Value.

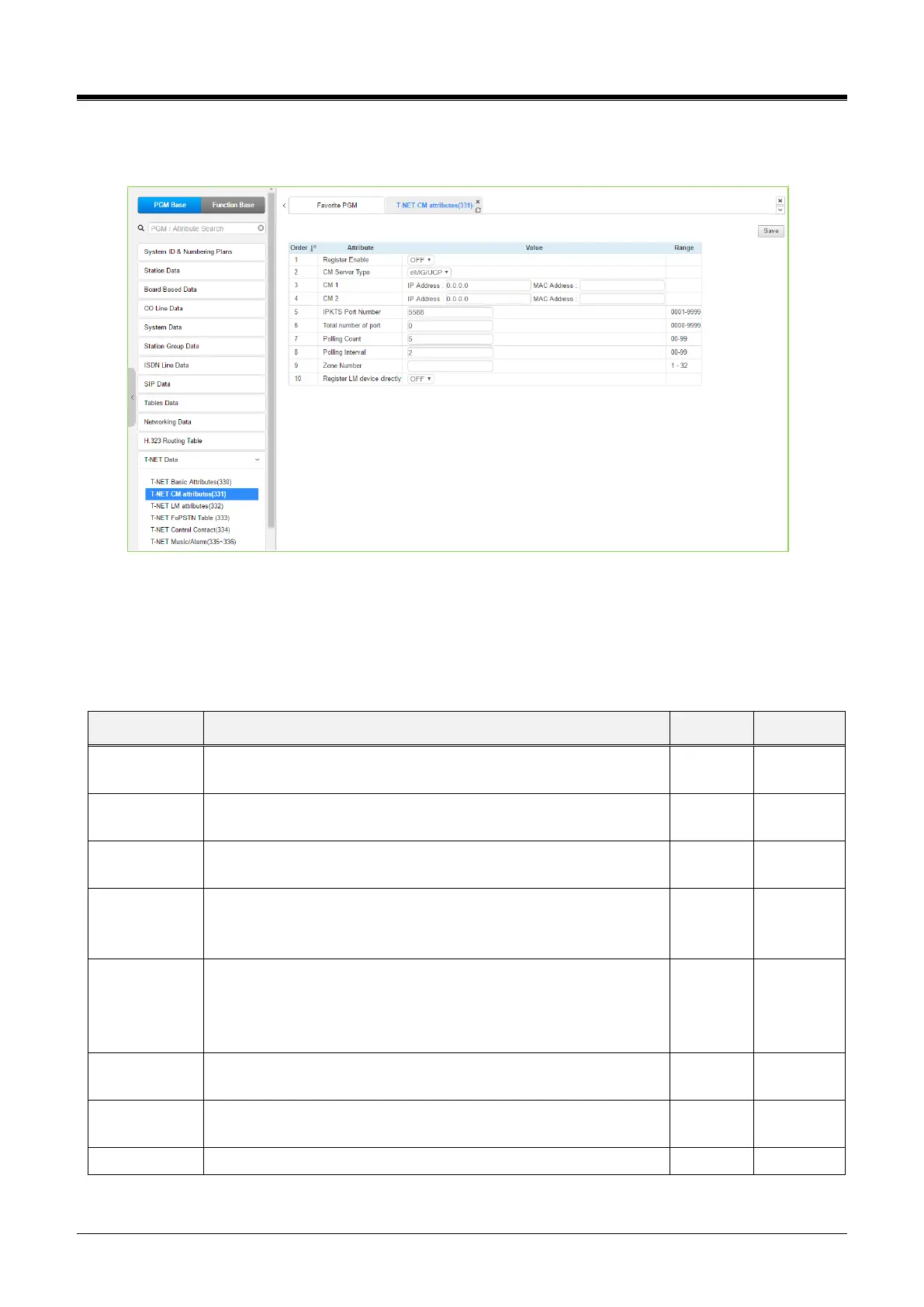

Figure 4.4.12.2-1 T-NET CM Attributes
Each LM (Local iPECS system), which is part of a Central Control Network, must be defined with the IP
Address of the CM (Central iPECS system). The LM configuration data is sent to the CM at the time the LM
registers with the CM. Total port counts define the ports allocated in the CM database for use by devices
registered to the LM. The number of ports defined in the database of each LM must be equal to or less than
the ports defined in the CM for the LM, see PGM 332, to register properly.
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Register
Enable
This field informs the LM to attempt registration with the CM. This
field must be set to ON for proper registration.
OFF
ON
OFF
CM server type
Assign the type of CM server; iPECS eMG/UCP or iPECS CM.
eMG/UCP,
CM
eMG/UCP
IP Address
This field defines the IP address of the CM that the LM will use.
IPv4
address
IPKTS Port
number
In the TNET environment, the IPKTS protocol signaling the UDP
port is defined. At present, this field is not used, do not change this
port number.
0001-9999
5588
Total number of
port
This field defines the total number of ports the LM will request to
be allocated by the CM for devices attached to the LM. This value
must be equal to or less than the port count in the CM for the LM
devices.
0000-9999
0
Polling Count
This field defines the maximum polling failures an LM considers a
WAN fault.
00-99
5
Polling interval
This field defines the interval time between LM to CM polling
attempts.
00-99
2
Zone Number
Zone number can be assigned to Device or GW.
1-32
