iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
118
4.4.4.5 CO/IP Ring Assignment - PGM 144
Selecting CO/IP Ring Assignment will display the CO/IP Ring Assignment data input page. Enter a valid CO
range and click [Load] to enter the CO/IP Ring Assignment data. Use the checkmark to indicate which
attributes to modify; checked attributes are stored by clicking the [Save] button.
Enter CO Range: eMG80/100: 1-74 / eMG800: 1-600 / UCP: 1-998

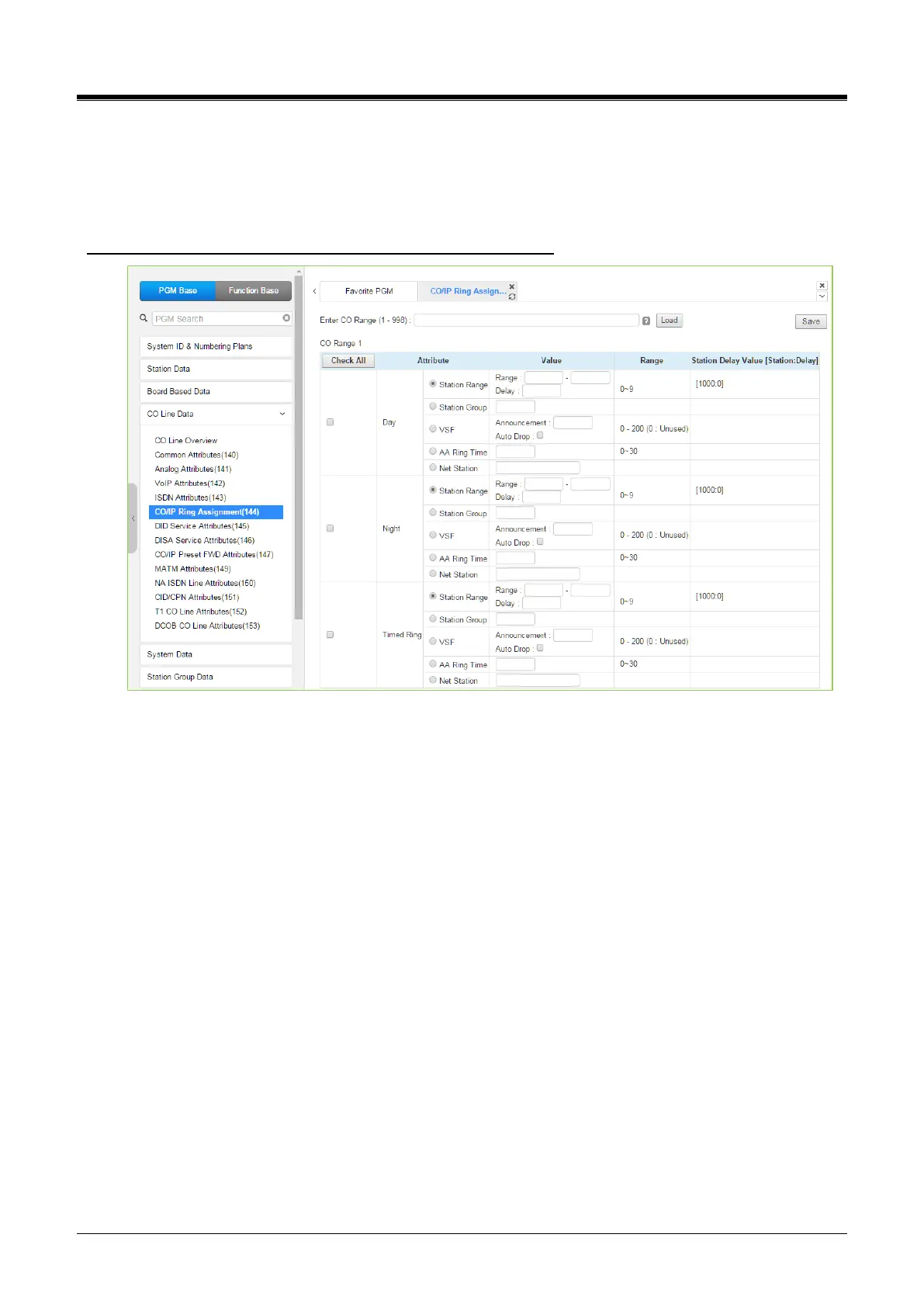

Figure 4.4.4.5-1 CO/IP Ring Assignment
Each “Normal” CO/IP line is assigned to signal a station, station group, or VSF Announcement for an incoming
call (Ring). Separate ring assignments are made for Day, Night, and Timed Ring mode. A delay from 1 to 9
Ring cycles can also be assigned. Based on this assignment, the station/Station group will receive an audible
ring after a delay of the number of Ring cycles entered. In addition, when assigned to ring a VSF
Announcement, the system can be programmed to disconnect after the announcement, ‘Auto Drop.’
When CO/IP Lines are programmed to ring the built-in Auto Attendant, a delay of 0 to 30 seconds can be
assigned as the AA Ring Time. The delay allows stations to be assigned Ring and to answer prior to signaling
the AA. At the expiration of the AA Ring Time, the call is sent to the assigned VSF announcement or
announcement 1 when no VSF announcement is assigned.
