iPECS UCP600 - Port Settings - PGM 174

iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
180
4.4.5.22 RS-232 Port Settings - PGM 174
Selecting RS-232 Port and USB 1&2 port Settings will display the RS-232 Port and USB 1&2 port Settings
data entry page. Click the [Save] button after changing Value.
The vUCP is not available for this feature.
eMG100 does not support USB serial feature.

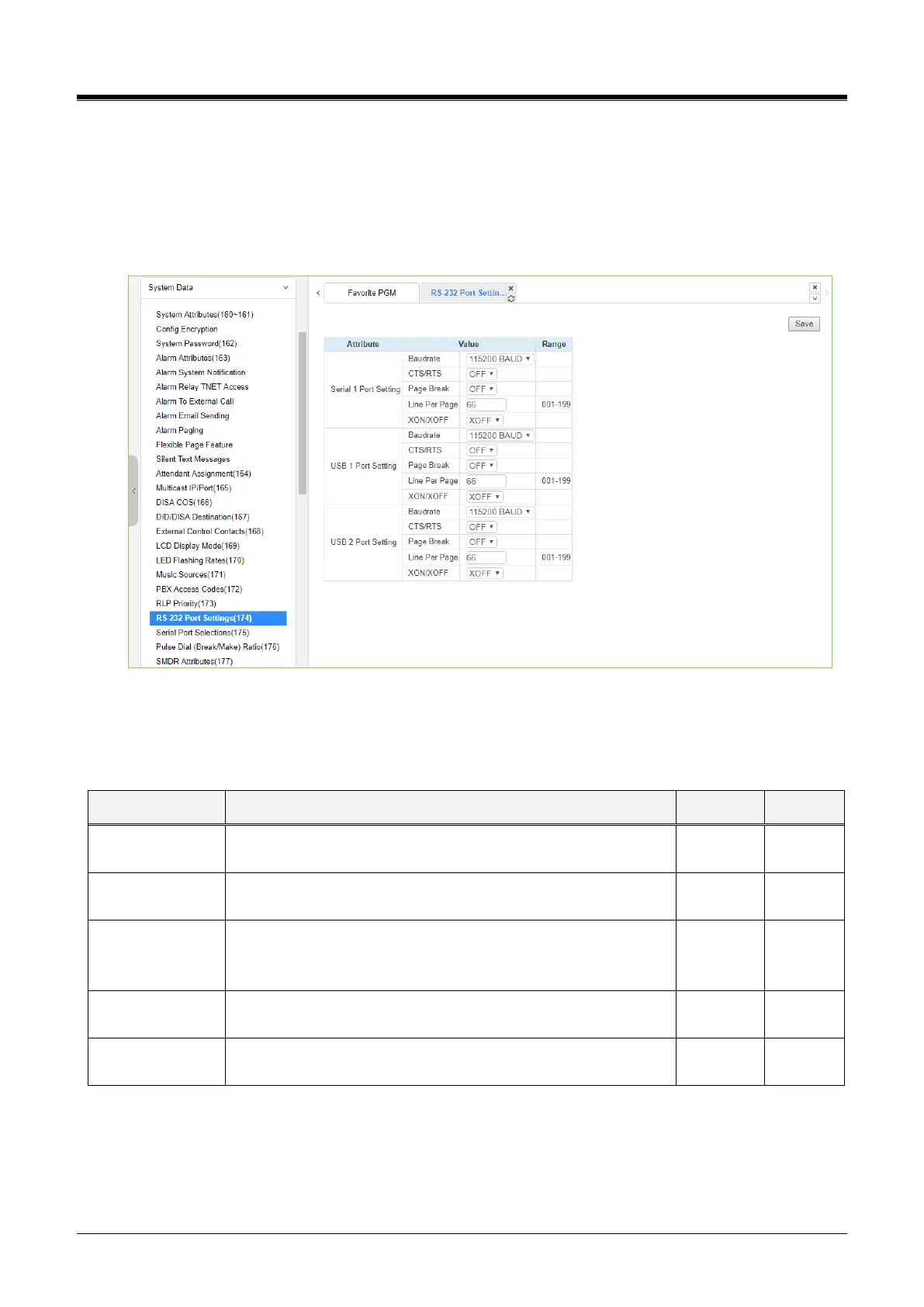

Figure 4.4.5.22-1 RS232 Port and USB 1&2 port Settings
Certain characteristics of each port are programmable, including baud rate, RS 232 control, and page settings.
Refer to the following table for a description of the settings and the data entries available.
Table 4.4.5.22-1 RS232 PORT and USB 1&2 port Settings
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Baud Rate
This entry establishes the BAUD rate for the RS-232 serial port.
Unknown, 9600, 19200, 38400, 57600, 115200
Refer to
description
115200
CTS/RTS
The system’s RS232 port can support Clear-to-Send (CTS), and
Ready-to-Send (RTS) control leads.
OFF
ON
OFF
Page Break
The system can send a page break command over the serial
port at the end of each page.
See Lines per Page below for page length set-up.
OFF
ON
OFF
Line Per Page
This entry sets the page length, the number of lines the system
will send before sending the page break.
001~199
66
XON/XOFF
This entry enables/disables XON/XOFF protocol.
XON/
XOFF
XOFF
