4.4.9.12 Flexible DID Conversion Table - PGM 231
Selecting the Flexible DID Conversion Table will display the Flexible DID Table data entry page. For
convenience, the copy, paste, and drag are available to enter or modify data. Click the [Save] button after
changing Value. Click [Initialize All table Data] to initialize all tables and Click [Delete All Table Data] to
delete.

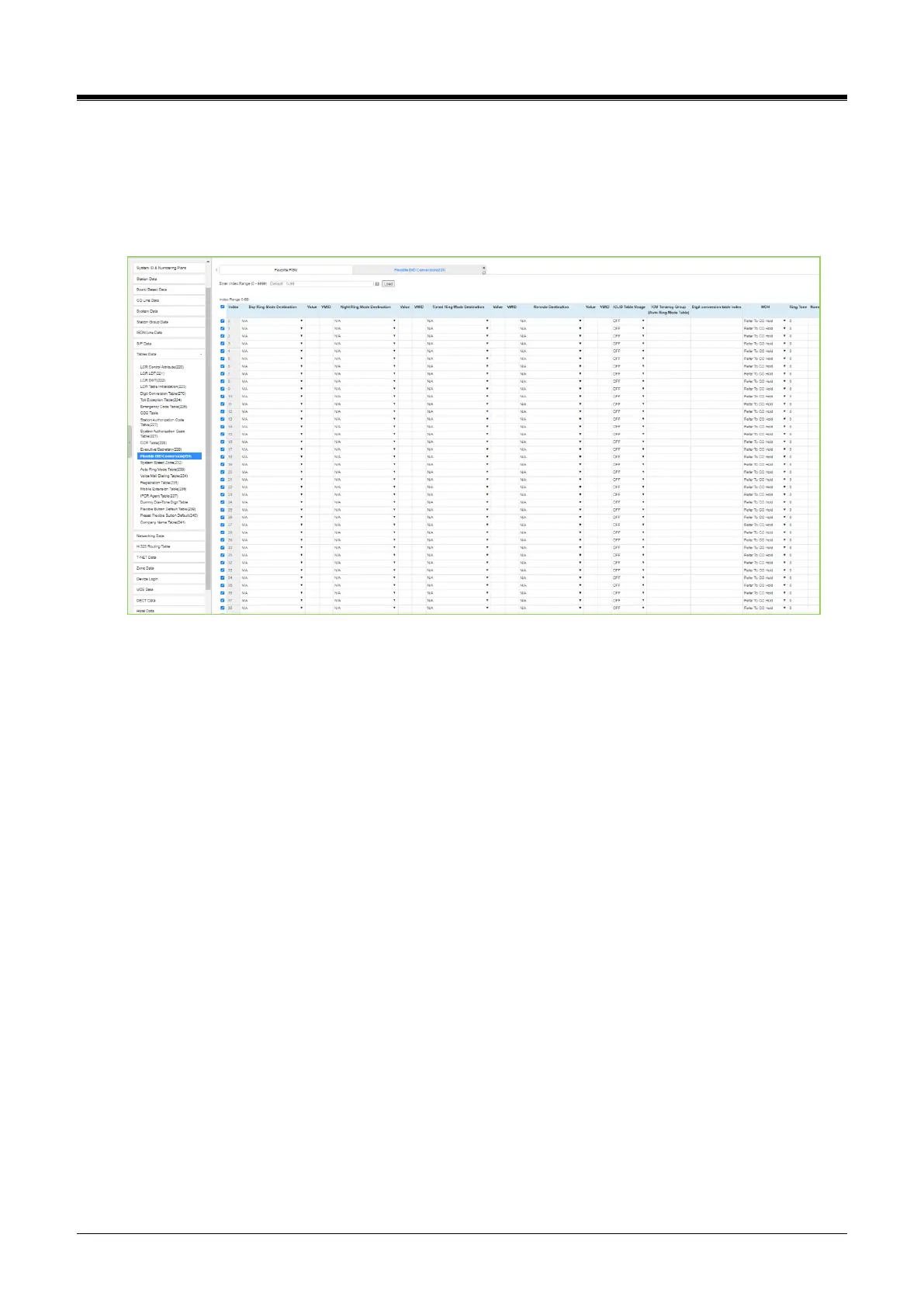

Figure 4.4.9.12-1 Flexible DID Conversion Table
When the received DID digits are converted, the resulting three-digit number may be used as an index to the
Flexible DID Conversion Table.
The Flexible DID Table index is used when DID Line is assigned a Conversion type 2. Refer to the DID
Service attributes section 4.4.4.6. Using the digit conversion index, a DID a Look-up determines call
destination in the Flexible DID Table.
The destination for the call is generally defined as a type and a value. The type selects options such as
station, station group, VSF, etc. The value specifies the particular station, station group, etc. In addition, ICLID
routing can be enabled for DID lines or can be assigned as an index to the Auto Ring Mode table.
