iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
396
4.5.7.2 Gateway License for UCP
All gateways which can have gateway license types are displayed on this web page. If a valid gateway license
file was uploaded by “License Upload” and a gateway with matched serial number is registered in the system,
the [Apply] button will be activated. This button is used to send the license file to the gateway. After the
license file is sent, it will be deleted, and the gateway will be restarted to apply the features of the license file.

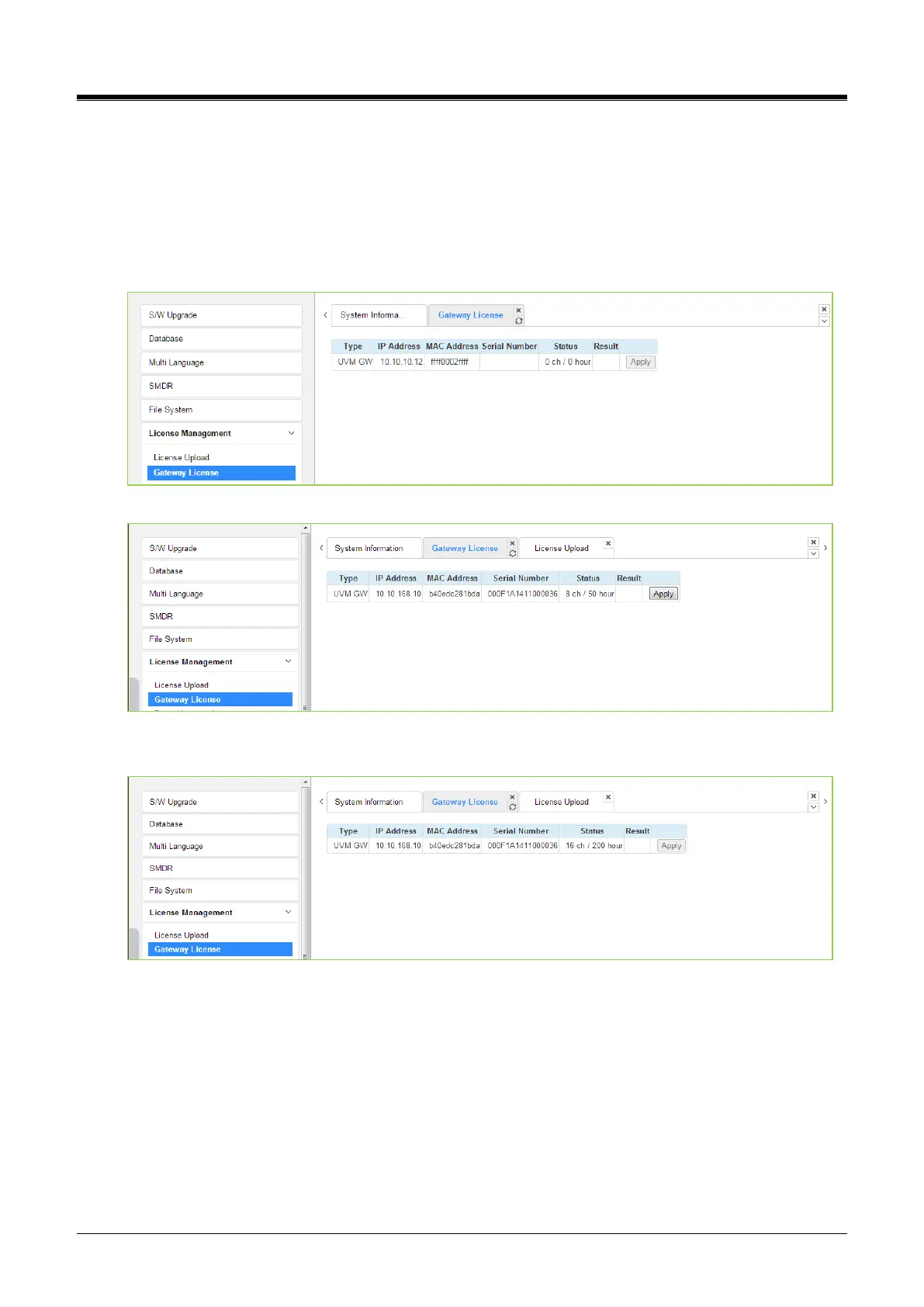

1) The following figure is before uploading the license.
2) After refresh, the following figure is displayed, and click the apply button to activate.
3) The final step is to reset the gateway license and then refresh. You can see the following figure for
the Gateway license.
