iPECS UCP600 - Incoming Route Table -PGM 328

iPECS eMG80/100& eMG800 & UCP & vUCP
Administration and Programming Manual Issue 2.5
334
Table 4.4.11.2-1 H.323 CO Group Attributes
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Failover CO Group
number
If the H.323 call is failover, assign another CO group.
eMG80/100:1-20, eMG800:1-200, UCP:1-200
Refer to
description
4.4.11.3 H.323 Incoming Route table -PGM 328
Selecting H.323 Incoming Route table will display the data entry page. Click the [Save] button after changing
Value.
Enter CO Group number: eMG80/100 : 1-20 / eMG800: 1-200 / UCP: 1-200

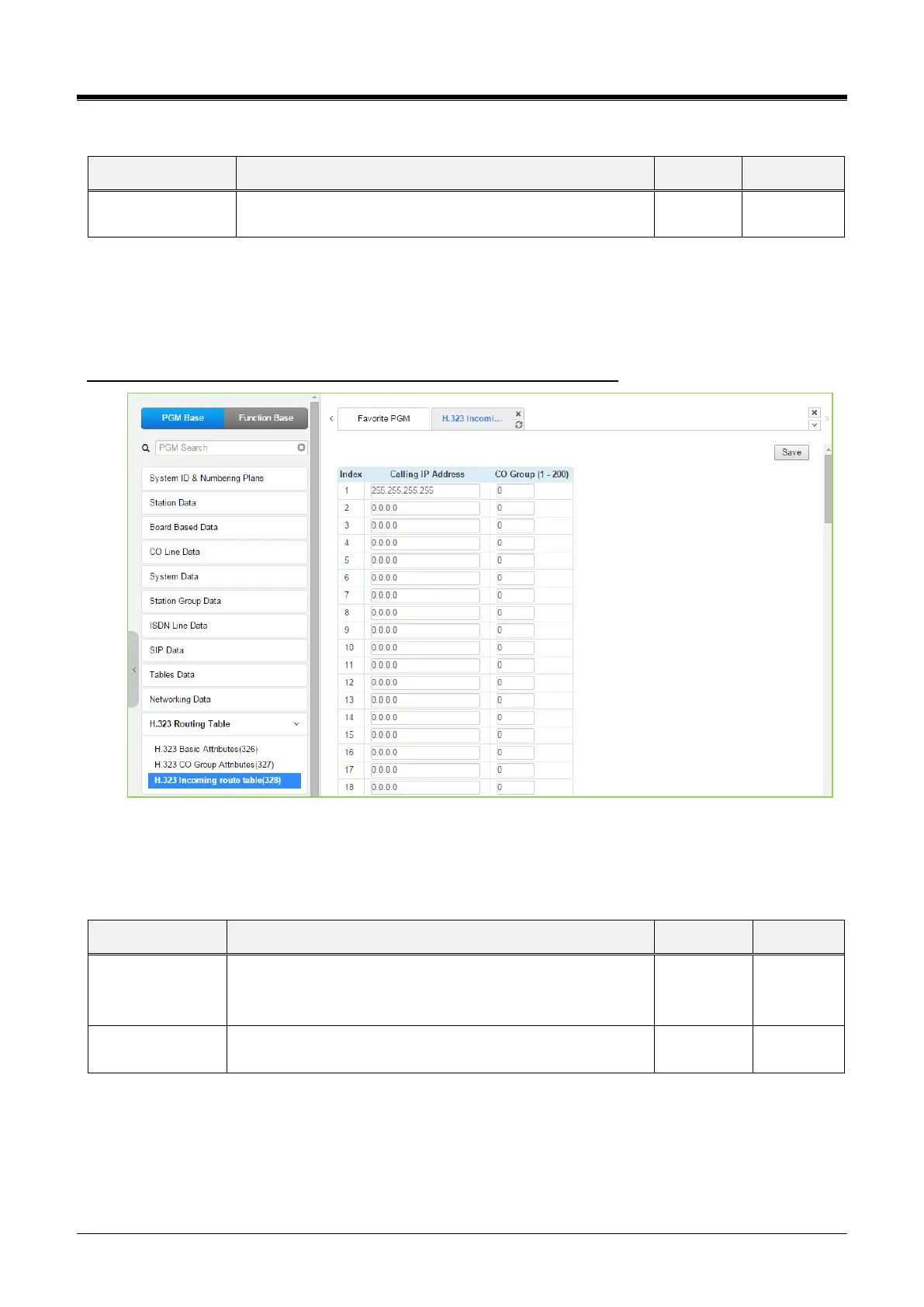

Figure 4.4.11.3-1 H.323 Incoming Route table
It is to get the direct H.323, the From IP-Address and ‘incoming CO Group number’ to be routed should be
assigned.
Table 4.4.11.3-1 H.323 Incoming Route table
ATTRIBUTE
DESCRIPTION
RANGE
DEFAULT
Calling IP Address
IP address associated with H.323 incoming calls.
255.255.255.255 is used when the external call comes from
an unknown IP Address which is not listed in this table entry.
0.0.0.0
CO Group
CO group number associated with H.323 incoming calls.
eMG80/100:1~20, eMG800:1~200, UCP:1~200
Refer to
description
0
