K117sm4e3
4-20
4. 3. 3 Analog Voltage to Transfer Corona
The standard value of the voltage outputted from the HV Power Supply PCB to the Transfer
Corona is specified as follows.
Plain paper 1.00 +/-0.05V
Tracing paper 1.00 +/-0.05V
Film 1.00 +/-0.05V
Check and adjust the output current in the following way.

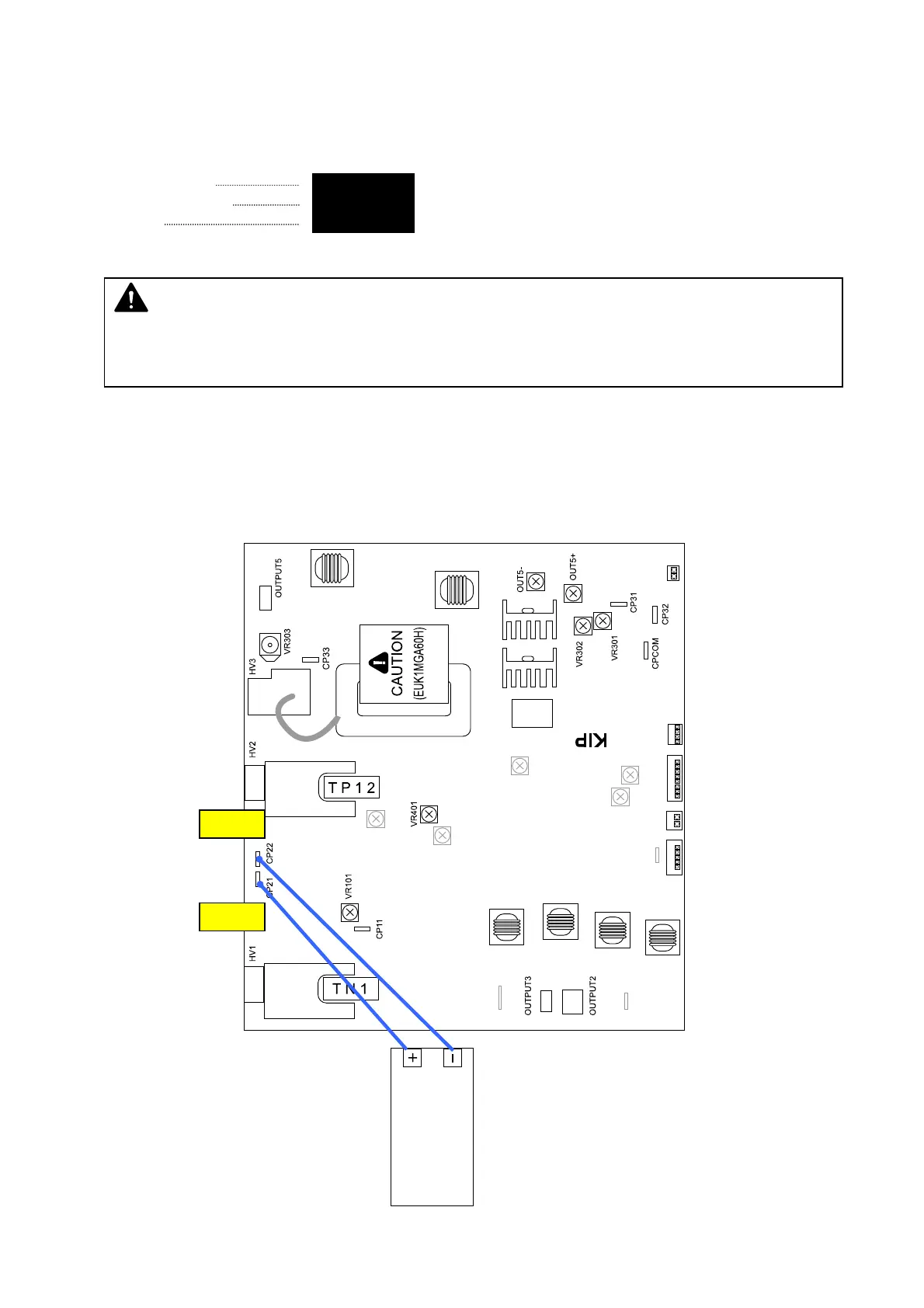

1. Connect the “+” cable of the multi-meter to the “CP21” pin on the HV Power Supply PCB
(EUK1MGA60HA).
Also connect the “-” one to the “CP22” pin.
And then, select the DC volt range on the multi-meter.
CP21
CP22
NOTE
The above values are just the standard values we have adjusted at the time of shipment.
Of course you may change these values according to the usage condition.
multimeter
(DC)
To Next Page
