KIP 700m - Page 141

K117sm5e3
5-19

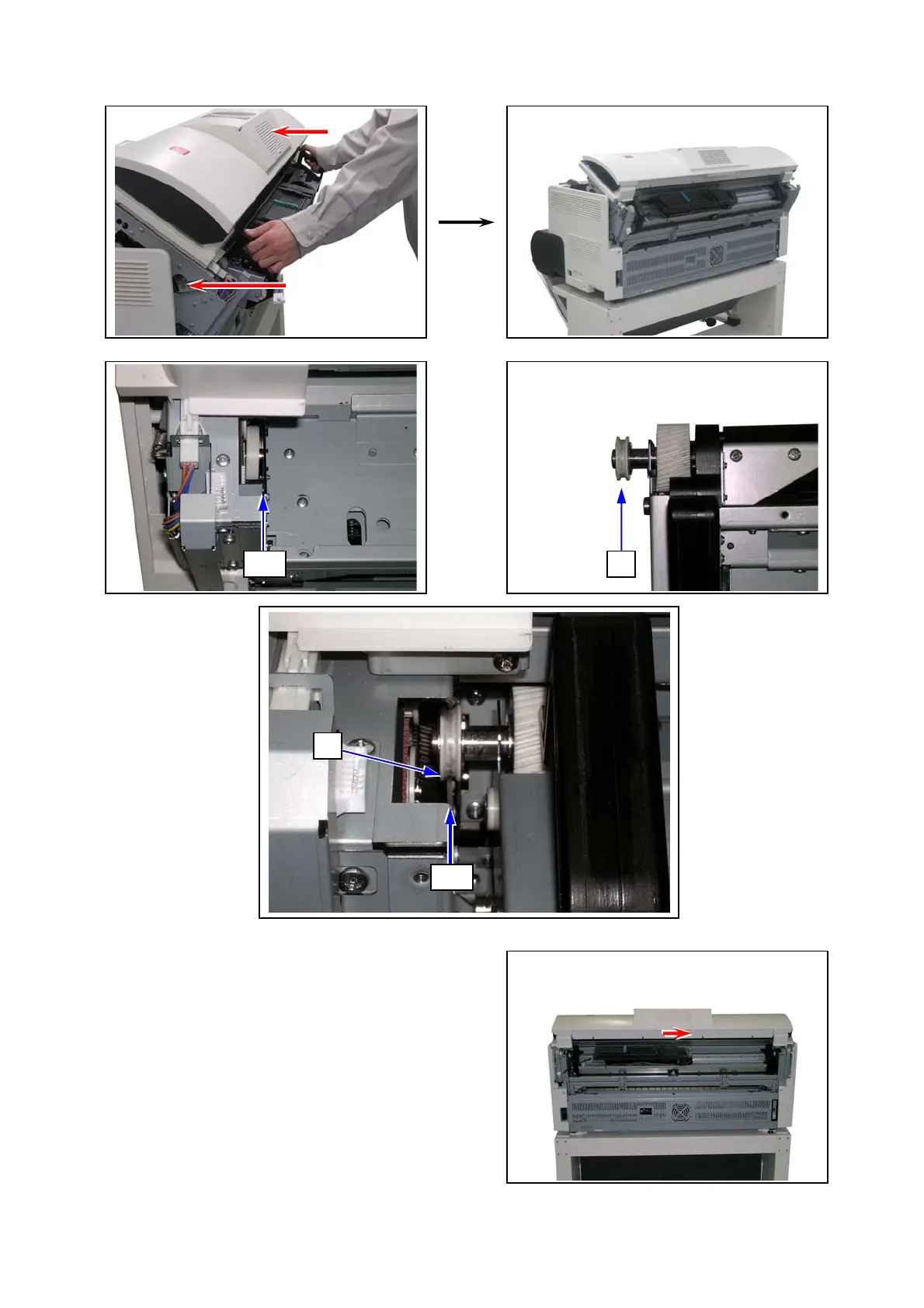

12. The Upper Unit should be open.
Hold the handgrip on both sides. Place the wheel (23) on the rail of the drive side (left hand).
Push the Developer Unit in the machine until it stops.
13. Slide the Developer Unit to the arrow direction (to your right hand).
rail 23
rail
23
