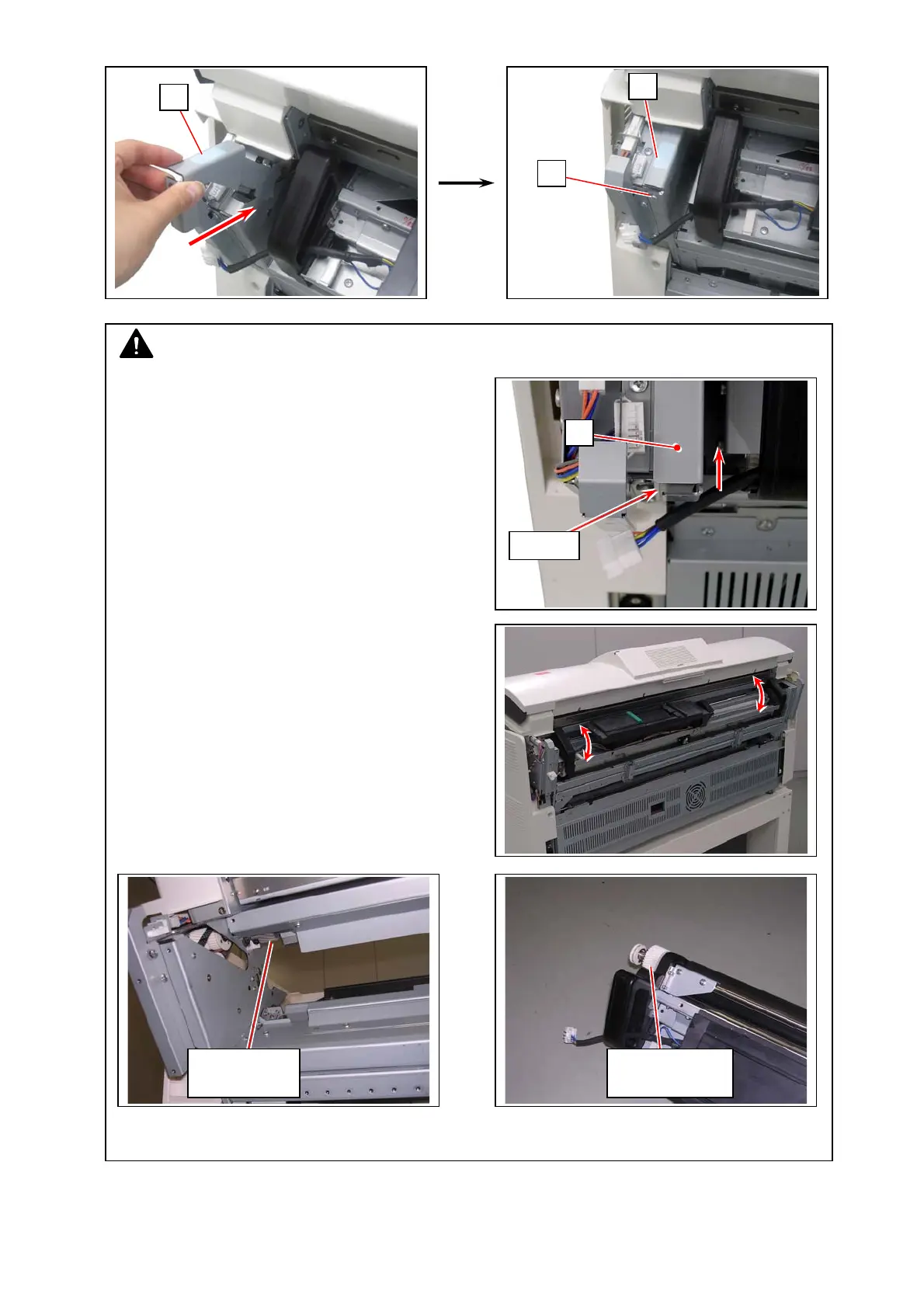

14. Secure the rail blocker R (7) to the rail opening with the screw (6).
NOTE
Fully insert the rail blocker R (7). If it does not
go into the opening completely, please follow
the instruction(s) below to seat the Developer
Unit in position.
1. Swing the Developer Unit up and down. This
allows the gears between the engine and the
Developer Unit to be engaged.
2. Hold the handles on both sides of the Developer Unit to slide it to your right hand.
6
7
7
7
gear
(engine side)
gear
(Developer Unit)
not fit in
