5-47

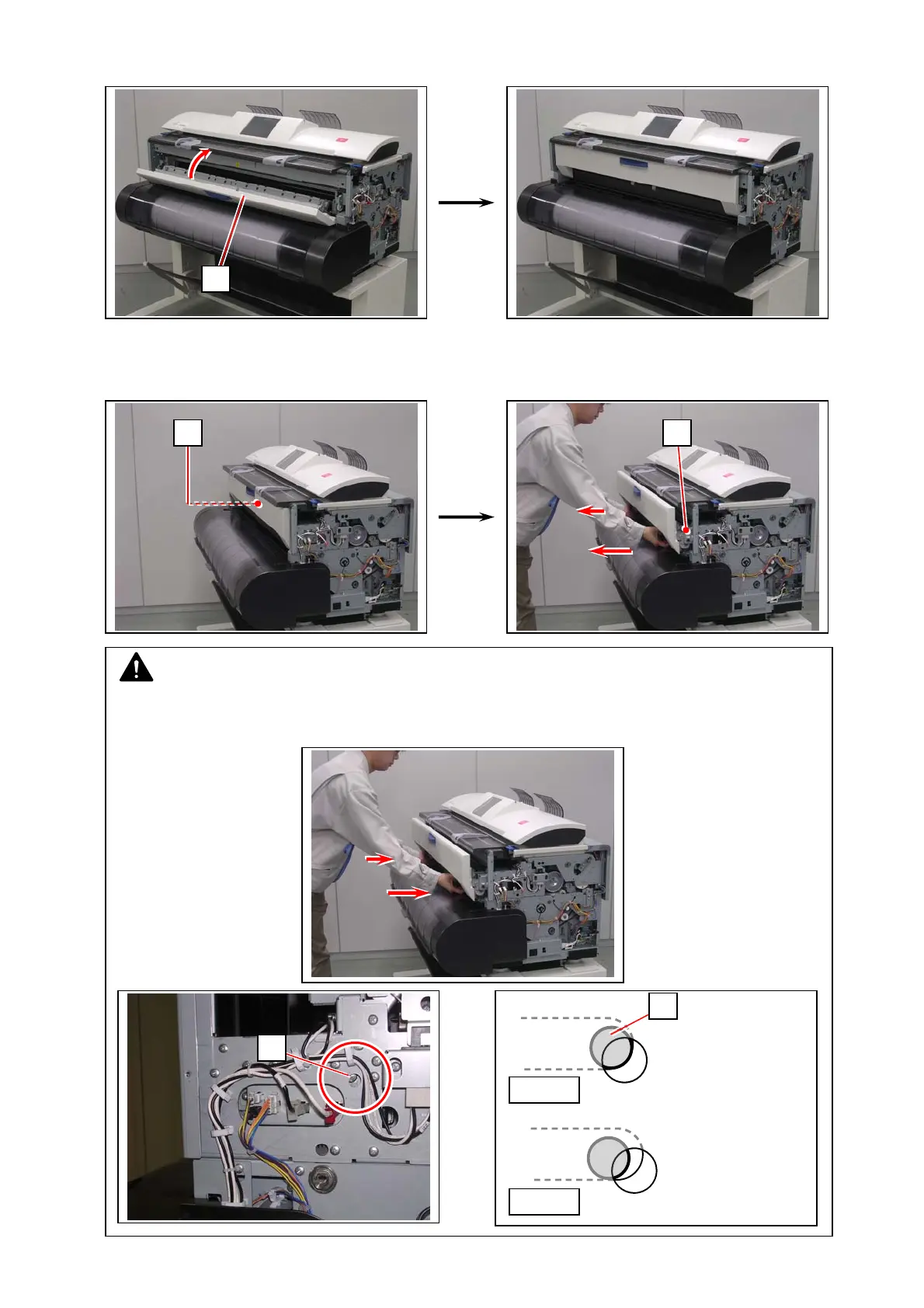

9. Close the Exit Cover (4).
10. Put your hands under the bottom of the Fuser Unit.
Pull and remove the Fuser Unit (10) from the machine.
NOTE
When you remount the Fuser Unit, fully push it in the machine. Check for this by the position
of the side pin (11) of the Fuser Unit.
4
10 10
11
correct
wrong
Pin (11) completely
inserted to end
Pin (11) not
inserted fully
11
