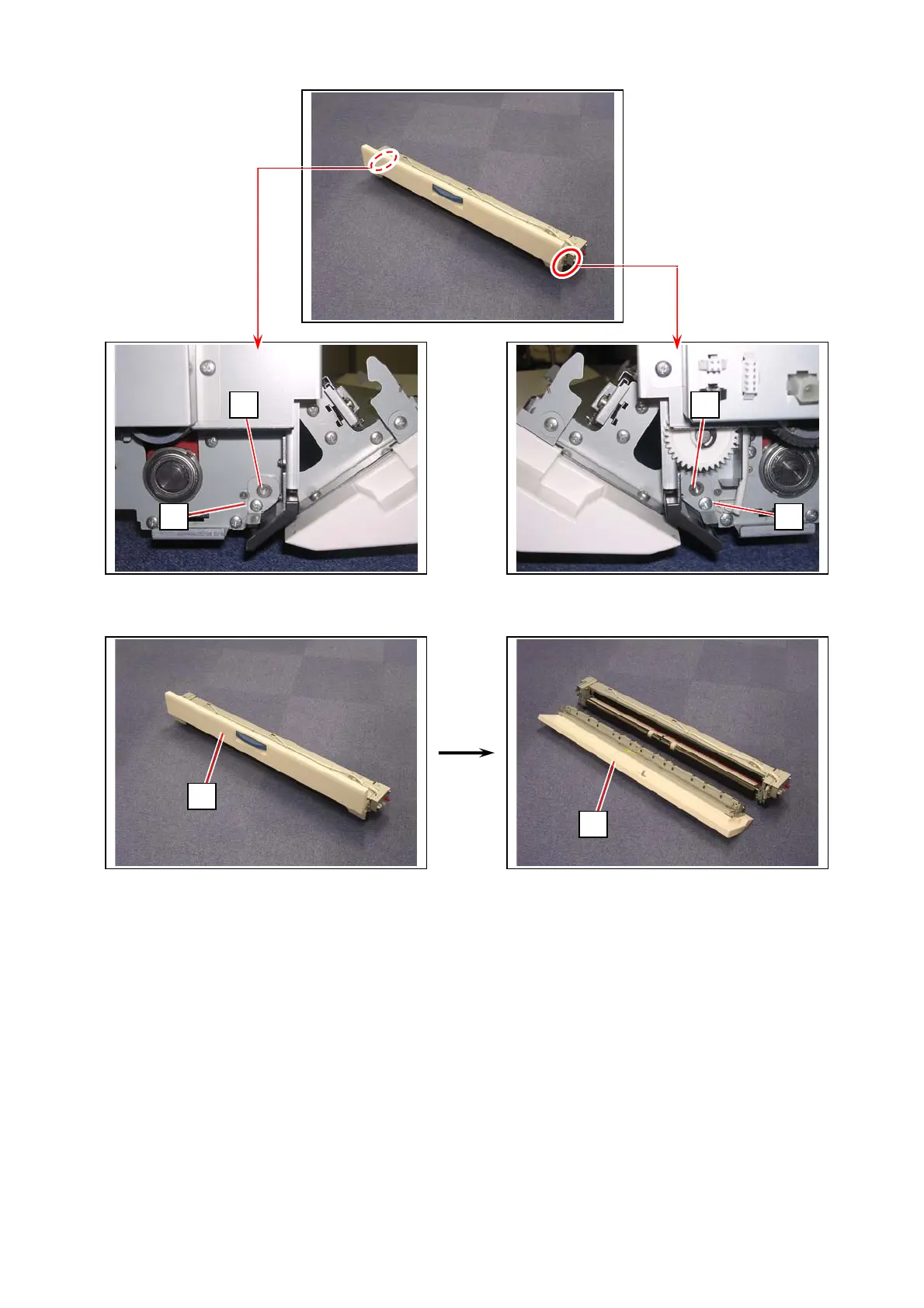

10. Remove 1 screw (12) on each side to remove the hinge plate L / R (13).
11. Remove the Exit Cover (4) from the Fuser Unit.
(Continued on the next page)
12 12
13 13
4
4
