KIP 700m - Page 214

K117sm5e7
5-92

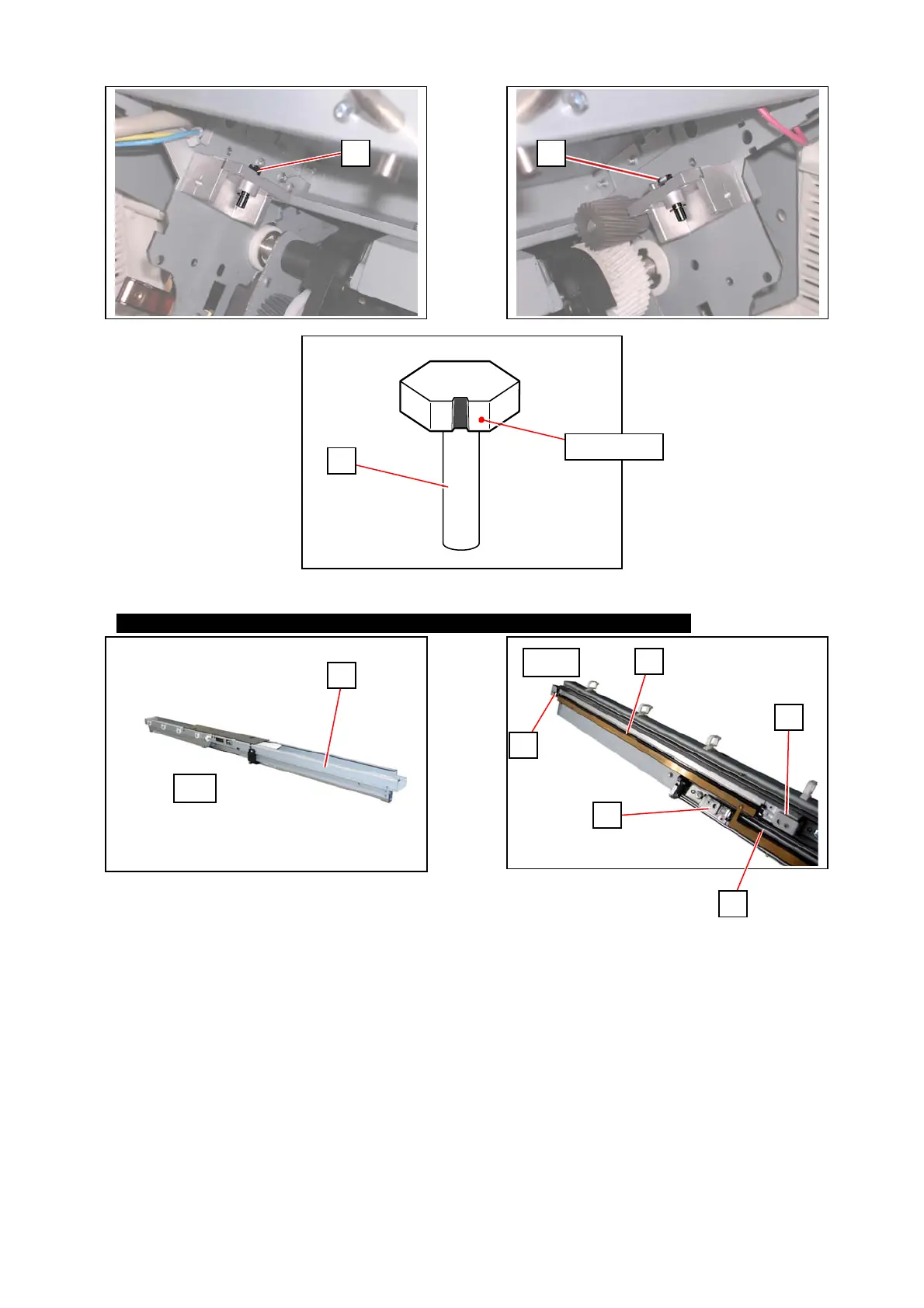

11. In the Upper Unit, there is the “hex. head pin” (20) on the rest (steel) of the LED Head Unit.
Check that the “marked face” comes to front. If not, turn the pin (20).
12. Take away the new LED Head Unit (21) from its container.
Again NEVER touch the LED Array (17) and the LED Head Bracket (18).
front
bottom
21
18
18
18
17
17
20 20
20
marked face
