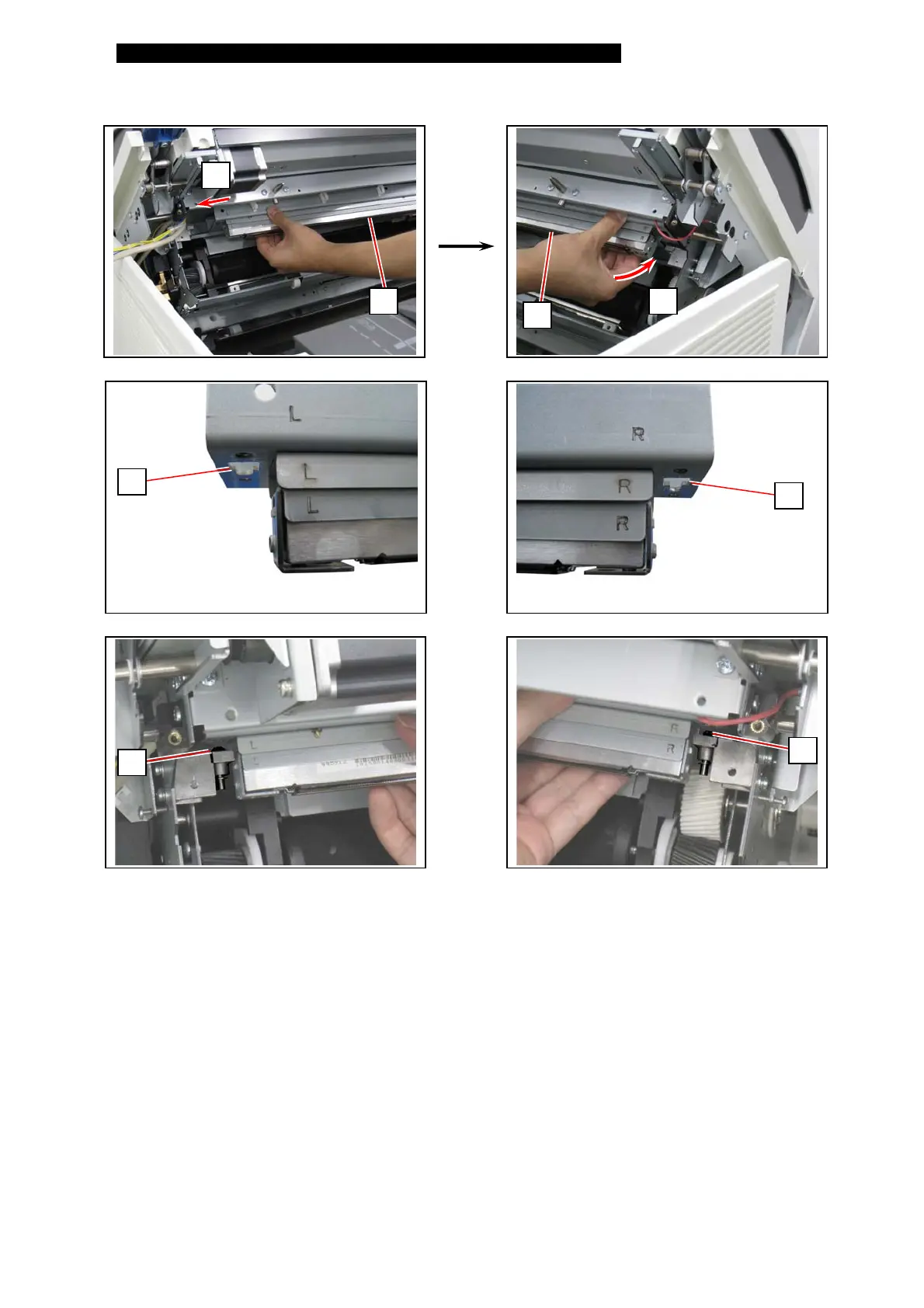

13. Again NEVER touch the LED Array and the LED Head Bracket.
Put the left side of the LED Head Unit (21) in the Upper Unit first (B), and then the right side (A).
Seat the unit so that the hex. head pin (20) goes into the square hole (22) on the LED Head
Unit.
22
22
20
20
A
B
21
21
