5-103

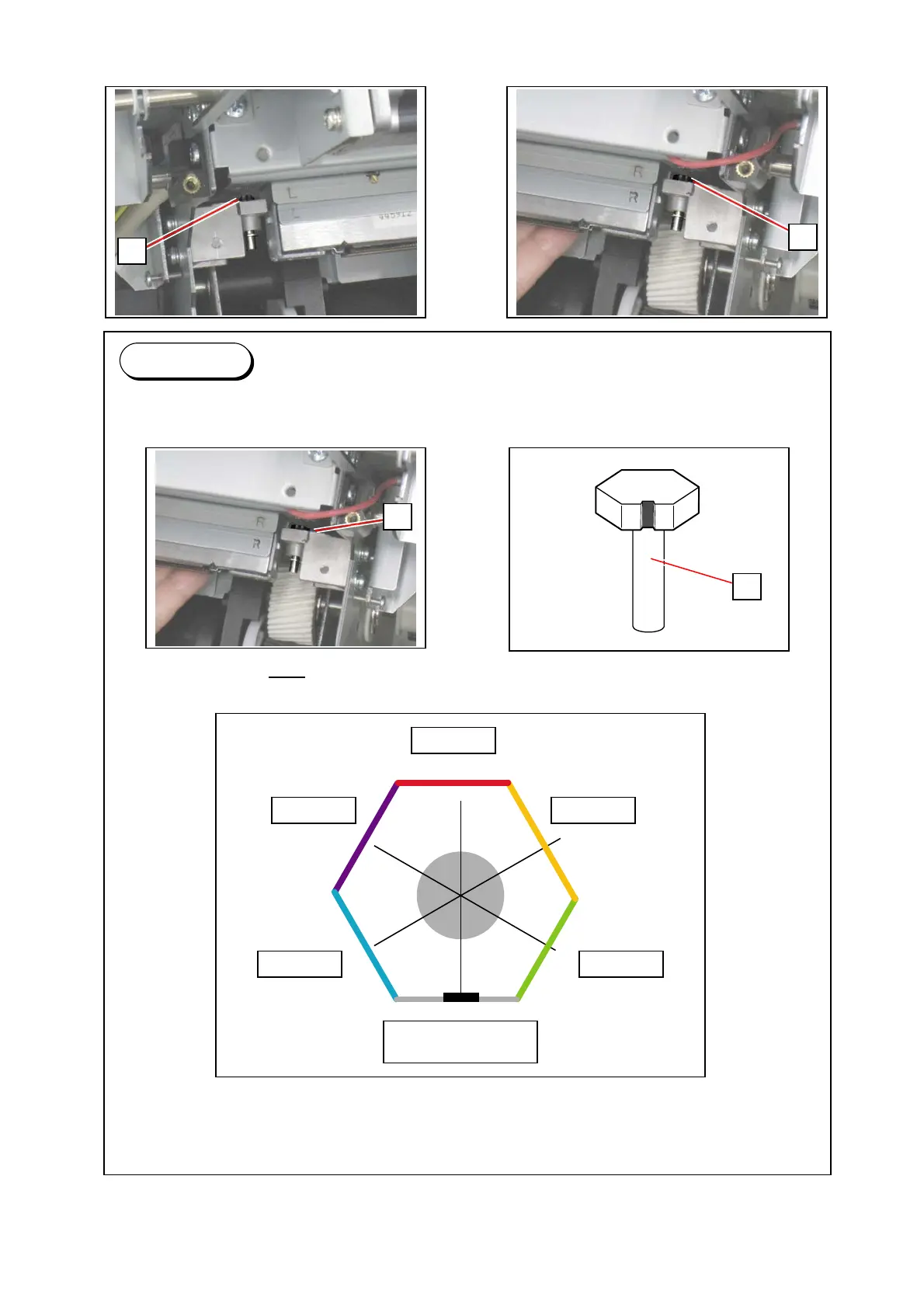

7. You can see the head of the “hex. head pin” (11) on both sides.
Specify which face comes to front. Read the column below about the pin’s head.
(see the next page)
11
11
Reference
The pin’s head is a type of hexagon head. One of the six faces has a groove.
This face is called “marked face”.
Exactly, the head is NOT
in regular hexagon.
Each face has different distance from the axis of the pin’s shaft.
For example, on step 7, a face in front of you is not “marked face”. Suppose you turn the pin
in two faces (= 120 degrees) counter clockwise, then you can see the “marked face”.
In this case, the original front face was “-0.2mm” (yellow).
marked face
= +/- 0mm, reference
+ 0.1mm
+ 0.2mm
+ 0.3mm
- 0.1mm
- 0.2mm
11
11
