NOTE

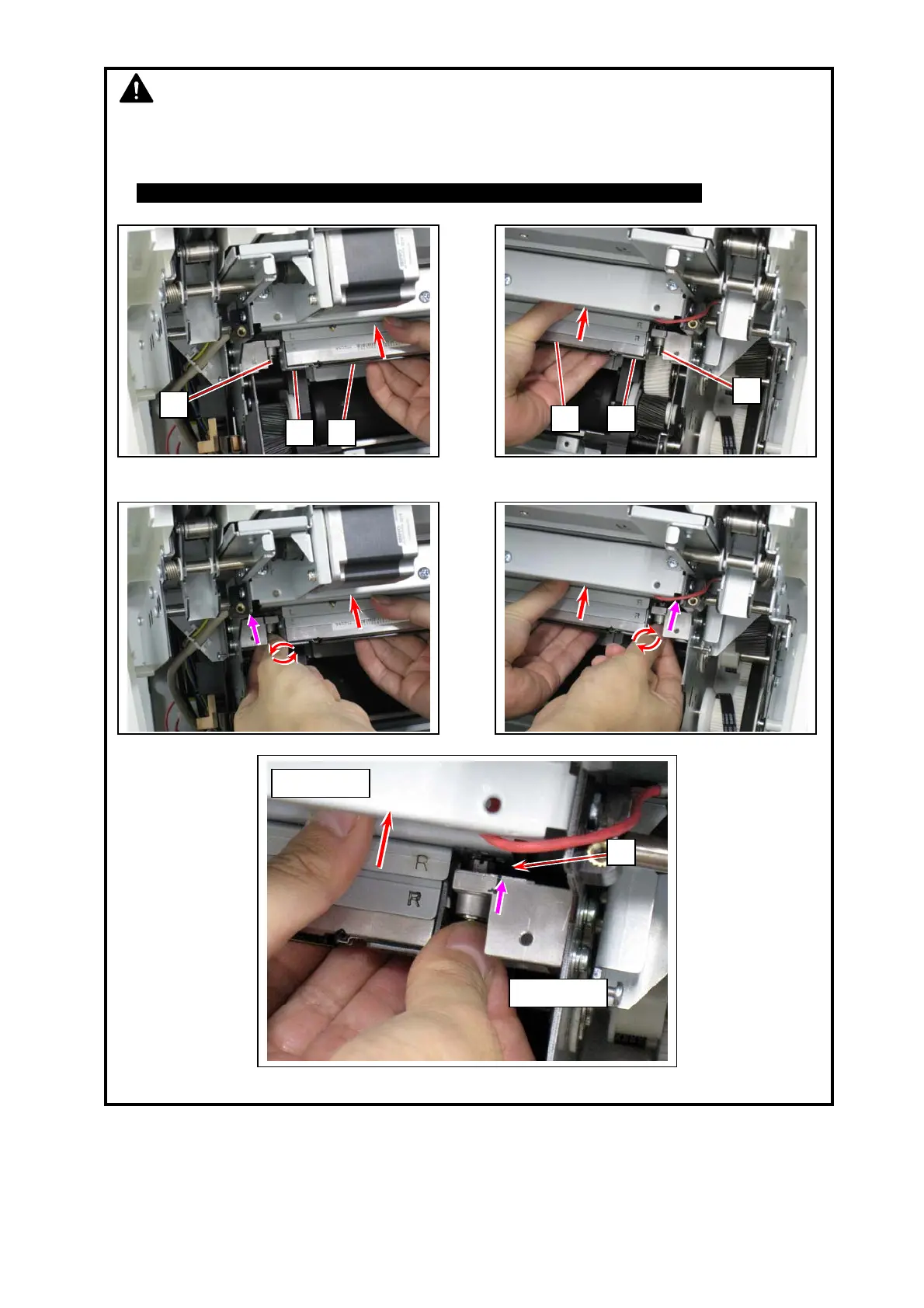

To turn the pin (11), follow the instruction below.
1. Lift up the LED Head Unit. Keep lifting it up.
Again NEVER touch the LED Array (9) and the LED Head Bracket (10).
2. Push and turn the pin (11).
(example) right side pin
9 10
9 10
11
11
Kee
p
liftin
g
u
p
Push and turn
11
