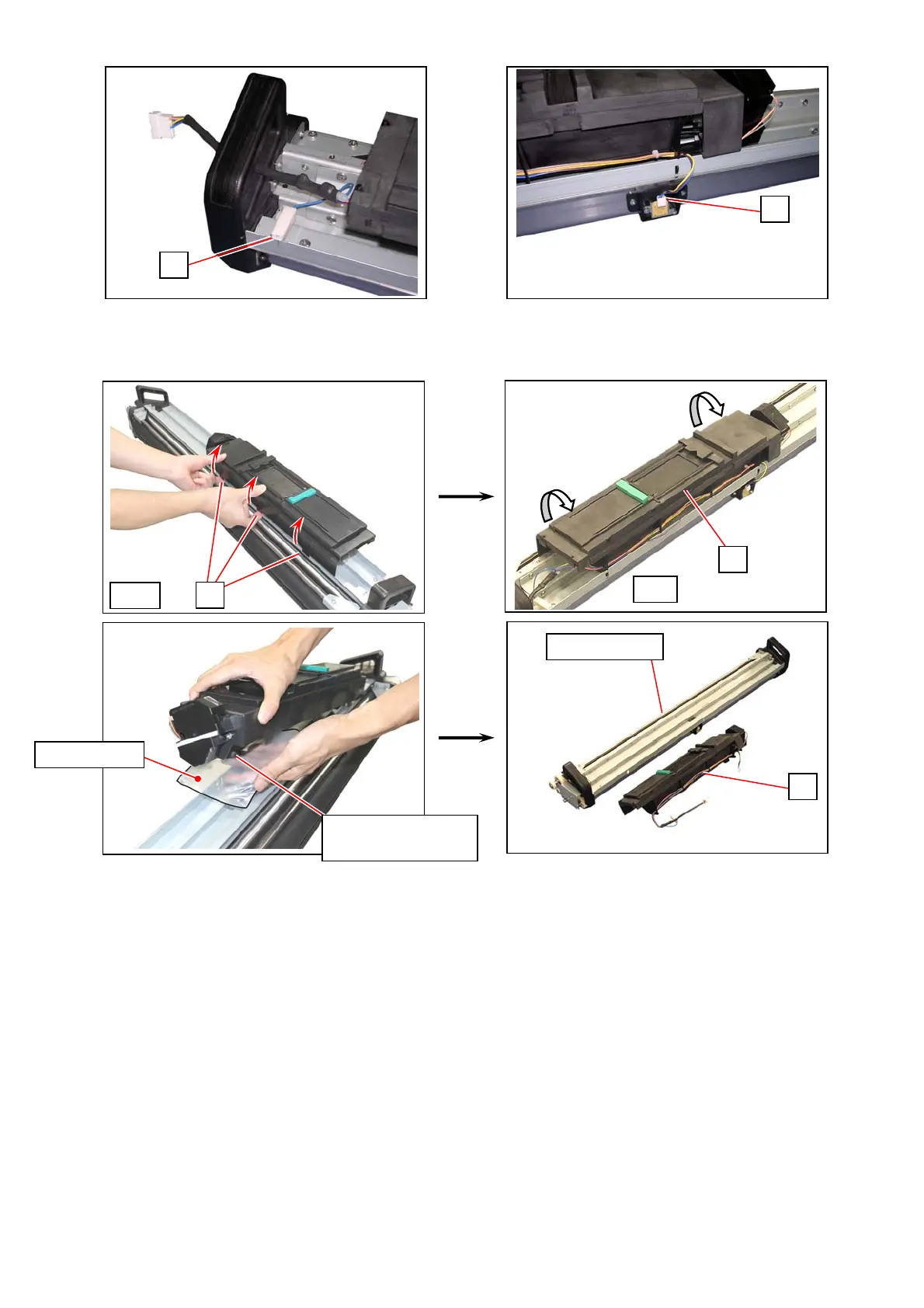

2. Disconnect the ground wire (1) and 1 connector (2).
3. Release 3 tabs (3) on the front. Turn the Hopper Unit (4) to the arrow direction to remove it from
the DEVELOPER ASSY. Place a sheet of paper or a plastic bag to receive toner spilling from
the Hopper Unit.
1
2
4
4
Developer Assy
rear
Toner may spill from
toner supply hole
Receive toner
front
3
