KIP 700m - Page 232

K117sm5e9
5-110

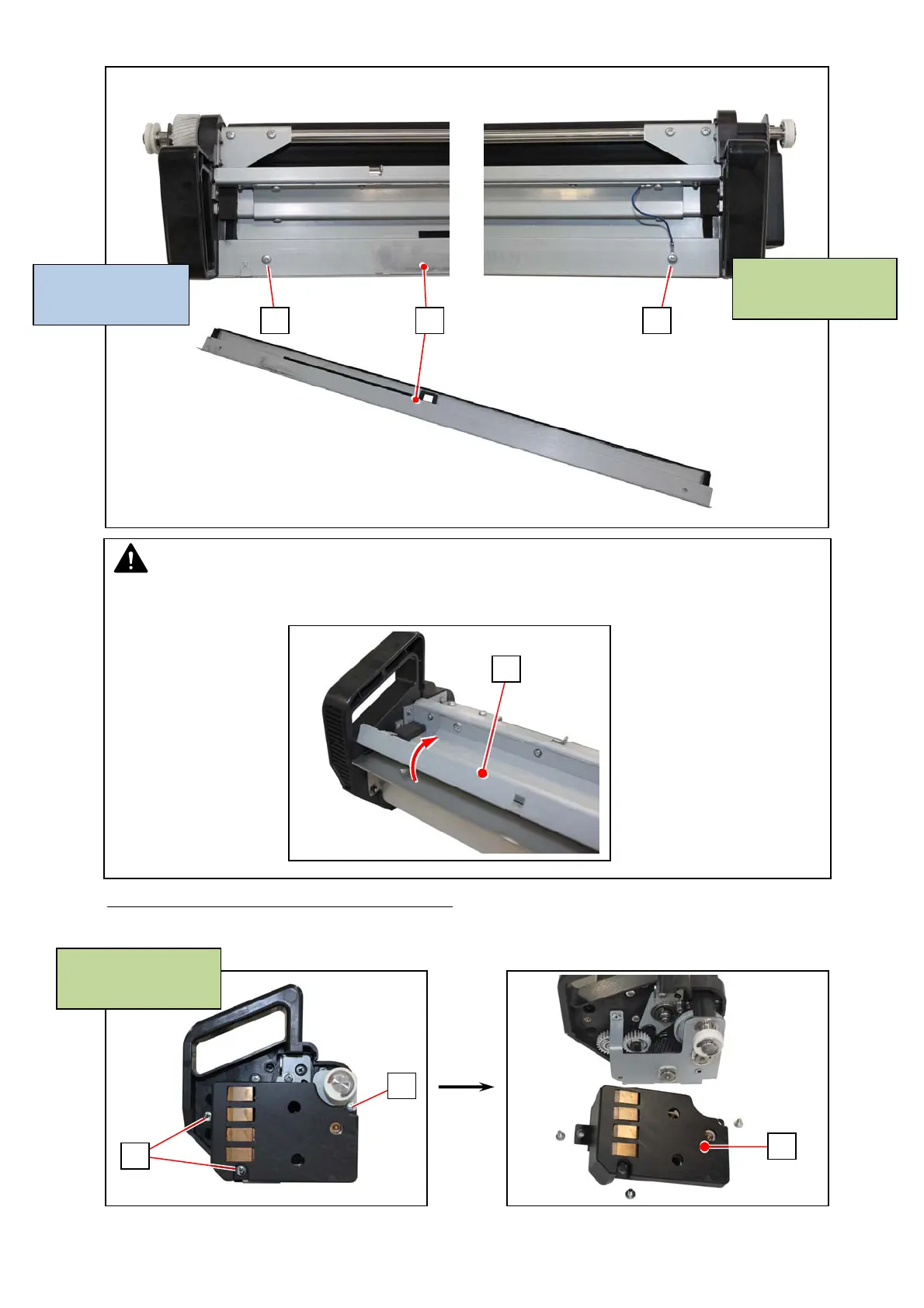

4. Remove 2 screws (5: M4x6) to remove the Cover 4 (6).
5. On the machine left side (right hand grip side)
, remove 3 screws (7: M4x6) to detach the
Terminal Cover (8).
top view
NOTE
Flip up the rear part of the Cover (6) to remove the Cover 6 (6)..
5 5 6
7
7
8
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
machine left side
= right hand grip side
= Bias Electrode side
6
