KIP 700m - Page 233

K117sm5e9
5-111

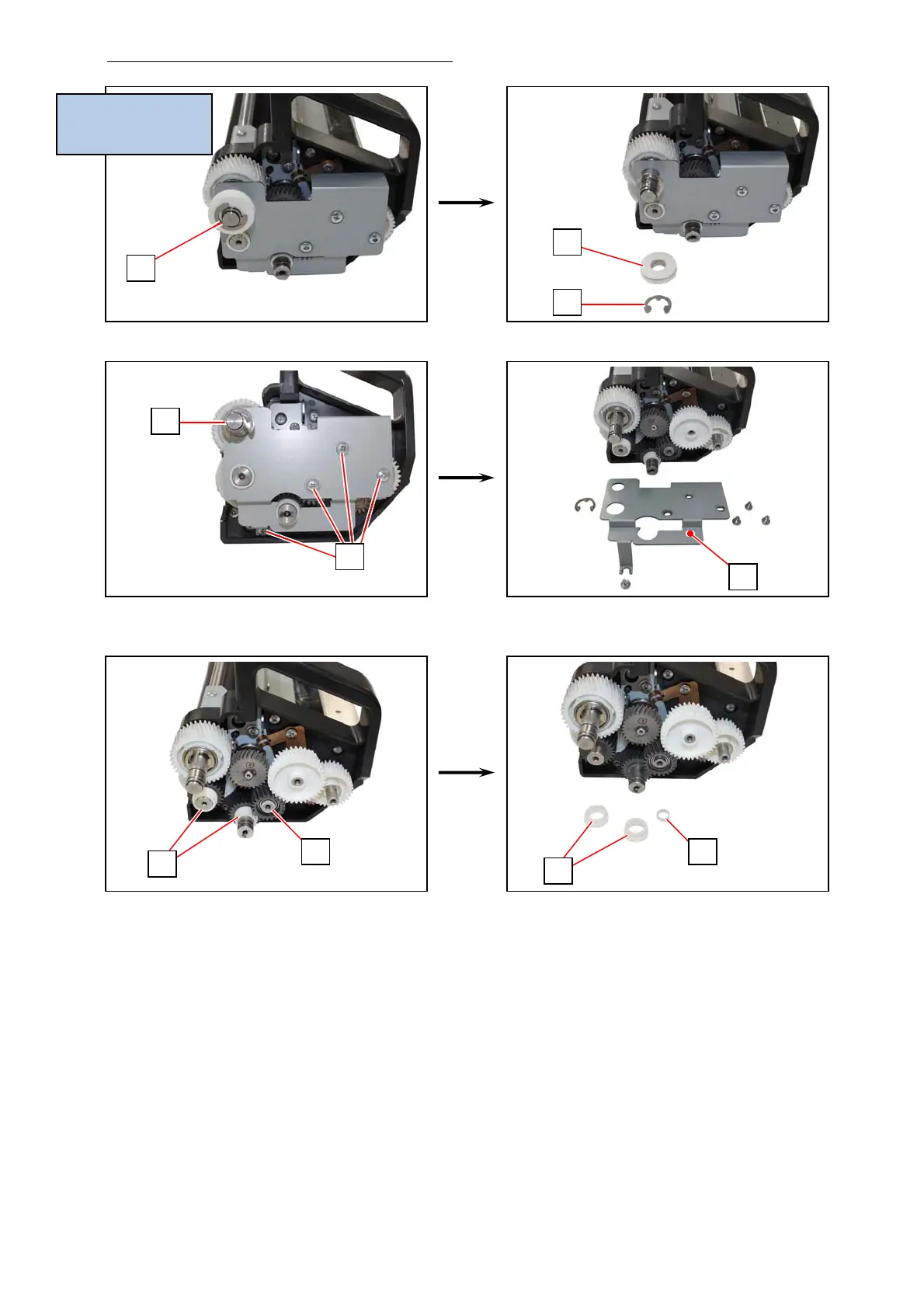

6. On the machine right side (left hand grip side)
, remove 1 Retaining Ring-E (9: E10) to remove
the Collar 2 (10).
7. Remove 1 Retaining Ring-E (11: E10) and 4 screws (12: M4x6) to remove the Plate 11 (13).
8. Remove 2 Collars (14) from the Developer Roller and the Toner Supply Roller.
Remove 1 Collar (15).
9
9
10
11
13
12
14
15 15
14
machine right side
= left hand grip side
= Drive side
