5-112

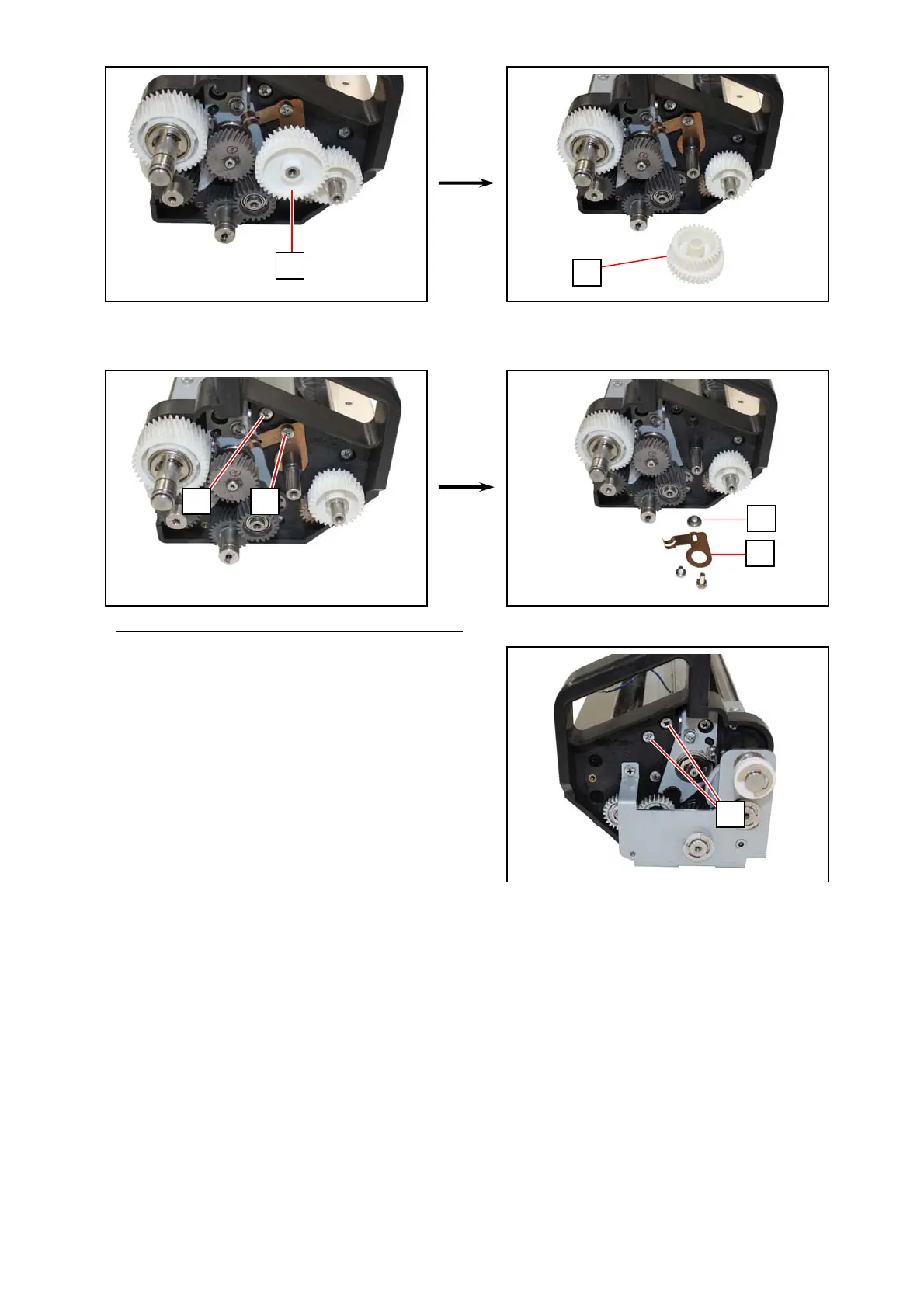

9. Remove the 31-37T Gear (16).
10. Remove 1 screw (17: M4x6) and 1 tooth washer screw (18: 4x10) to remove the Leaf Spring 6
(19) and the Collar (20).
11. On the machine left side (right hand grip side)
, remove 2 screws (21: M4x6).
16
16
17
18
20
19
21
