KIP 700m - Page 241

K117sm5e9
5-119

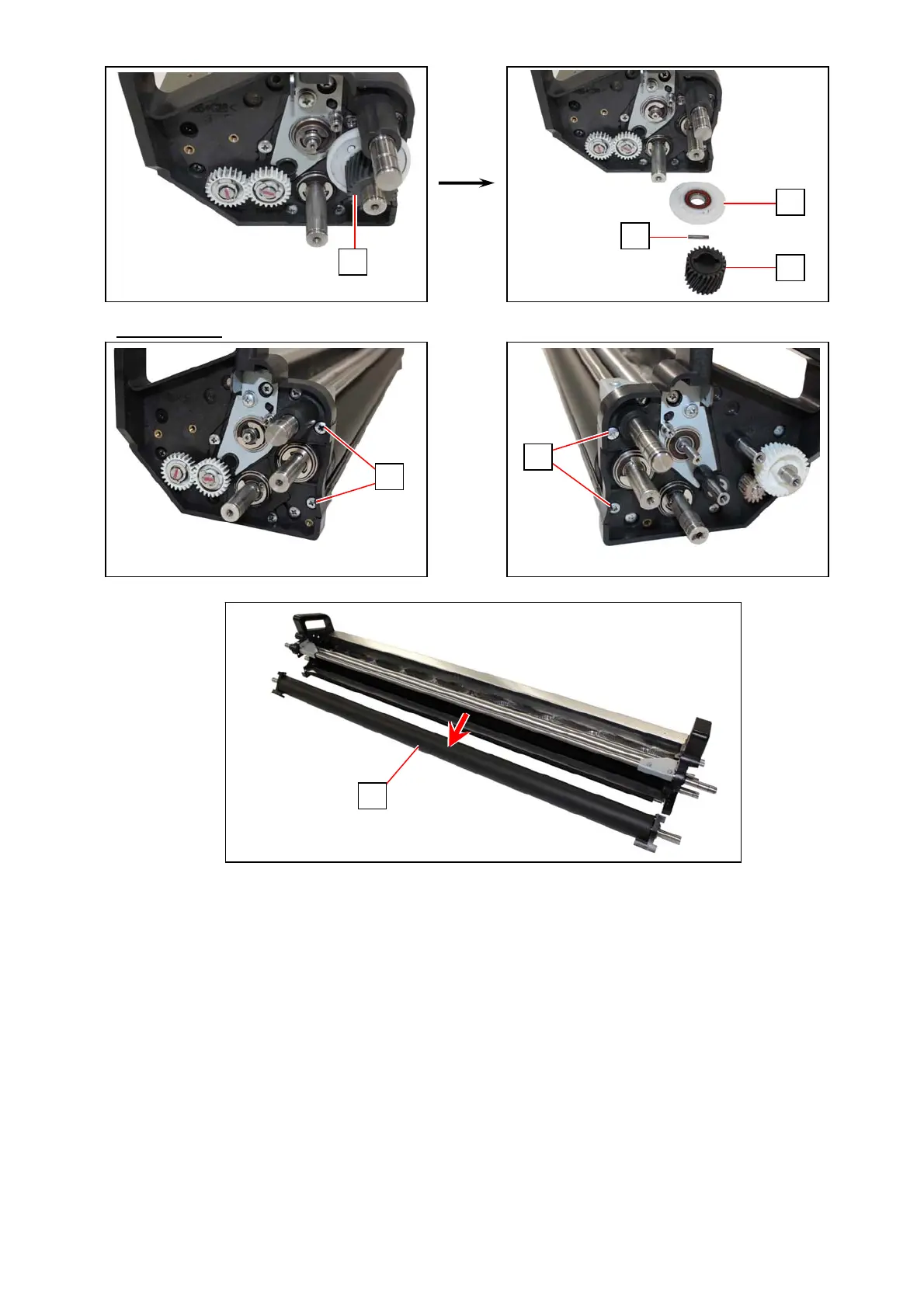

30. Remove the 24T Helical Gear (49), the Parallel Pin (50: 3x16) and the Counter Roller (51).
31. On both sides
, remove 2 each screw (52: M4x6) to remove the Developer Roller (53).
49
49
50
51
52
52
53
