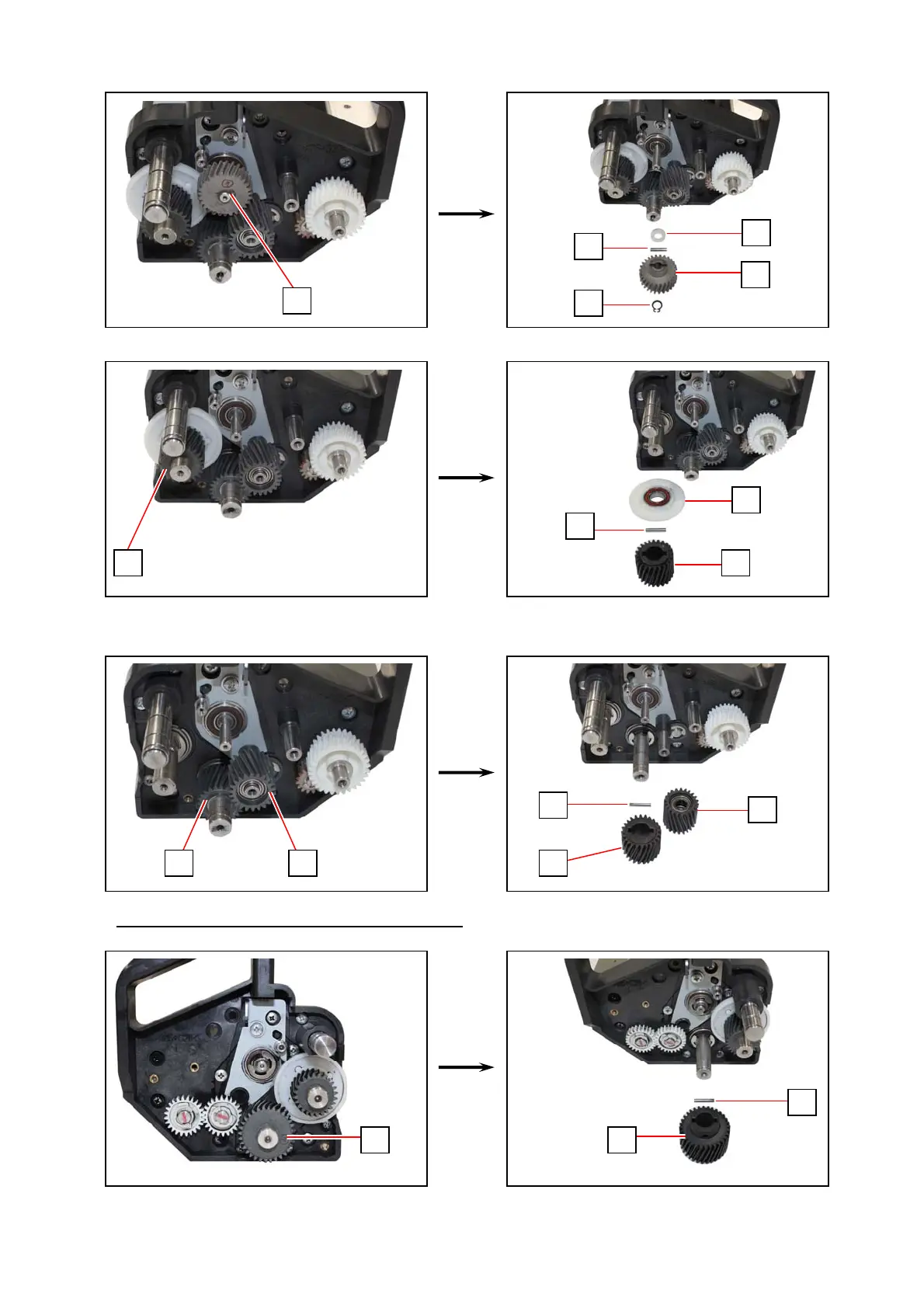

26. Remove C Ring (37: C6) to remove the 27T Helical Gear (38), the Parallel Pin (39: 2.5x10), the
Collar 3 (40).
27. Remove the 24T Helical Gear (41), the Parallel Pin (42: 3x16), the Counter Roller (43).
28. Remove the 22T Helical Gear (44). Remove the 24T Helical Gear (45) and the Parallel Pin (46:
3x16).
29. On the machine left side (right hand grip side)
, remove the 32T Helical Gear (47) and the
Parallel Pin (48: 3x16).
