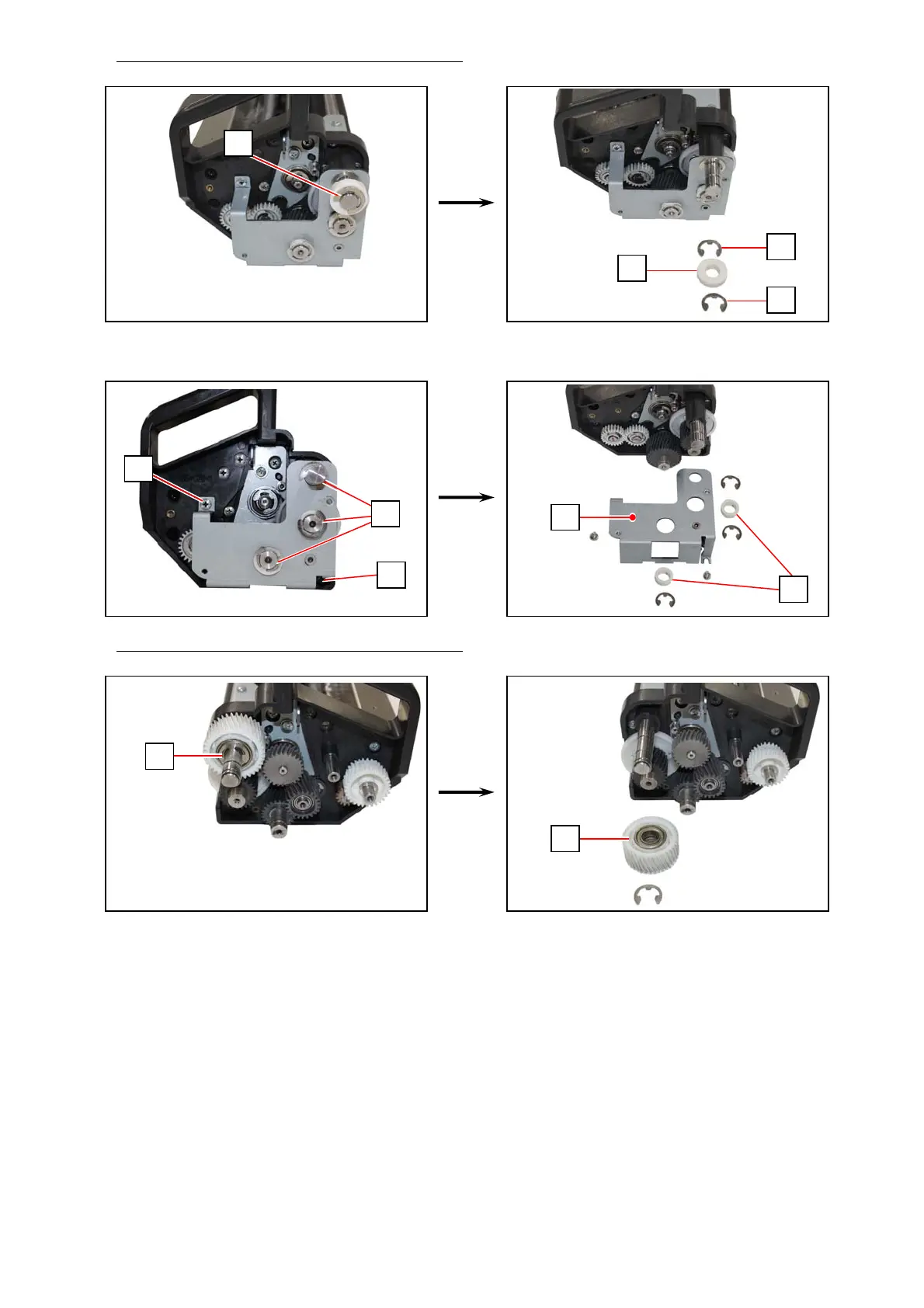

23. On the machine left side (right hand grip side)
, remove 1 Retaining Ring-E (28: E10) to remove
the Collar 3 (29) and another Retaining Ring-E (30: E10).
24. Remove 3 Retaining Ring-E (31: E10) and 2 screws (32: M4x6) to remove the Collar (33) and
the Plate 13 (34).
25. On the machine right side (left hand grip side)
, remove 1 Retaining Ring-E (35: E10) to remove
the 38T Helical Gear (36).
