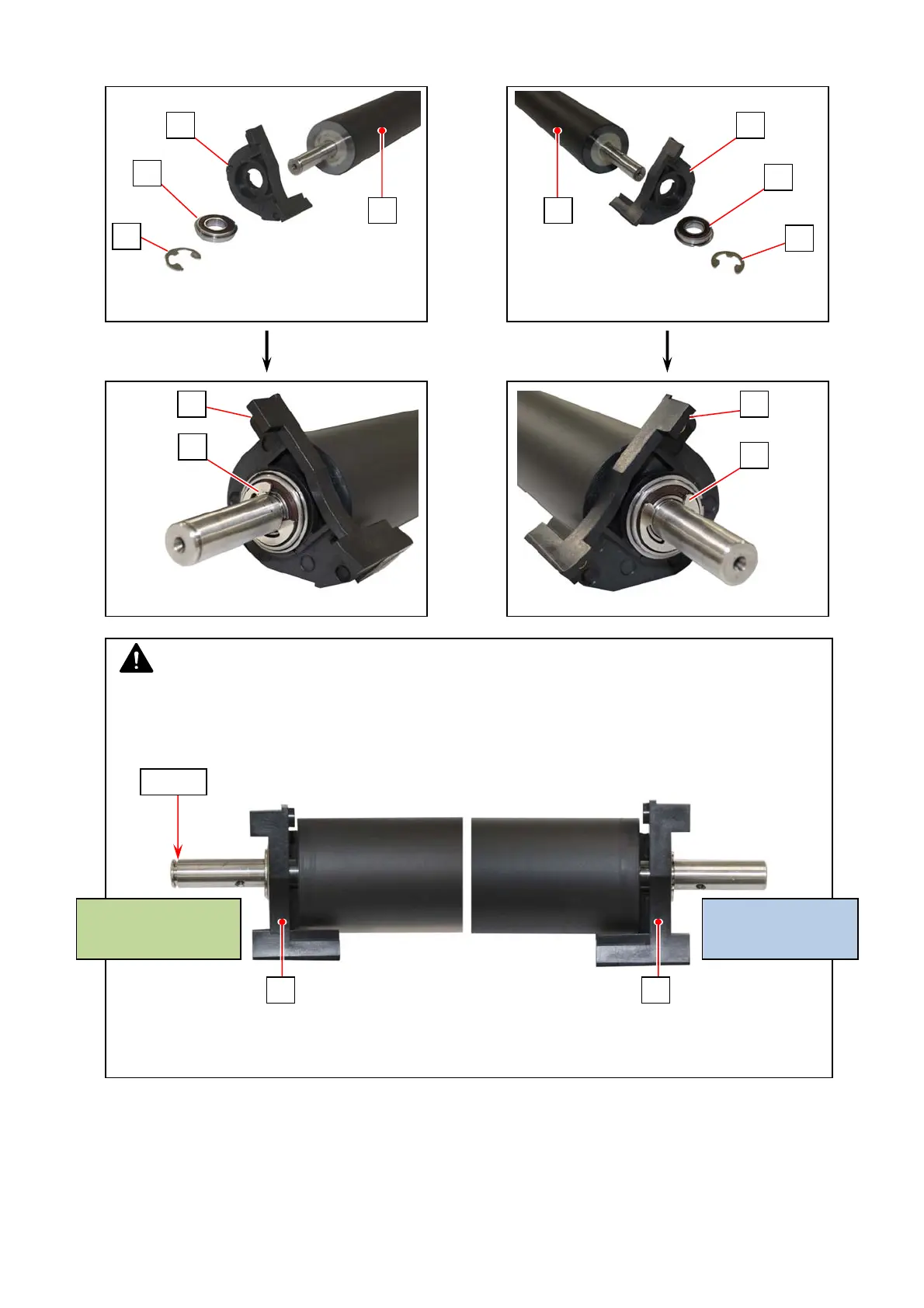

38. Insert the Side Plate 21 (56), the Side Plate 19 (57) and the Bearing (55) on both side shafts of
the new Developer Roller (60). Install Retaining Ring-E (54: E10).
NOTE
(1) Mind the direction of the roller when you return the Side Plate 21 (56) and the Side Plate
19 (57). The Side Plate 21 (56) should be installed to the shaft with a groove, the
machine left side (right hand grip side).
(2) Do not install the Developer Roller at this time. It will be installed to the Developer Assy in
the later step 69.
54
54
55
55
57 56
54
54
6060
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
56 57
groove
56 57
