KIP 700m - Page 246

K117sm5e9
5-124

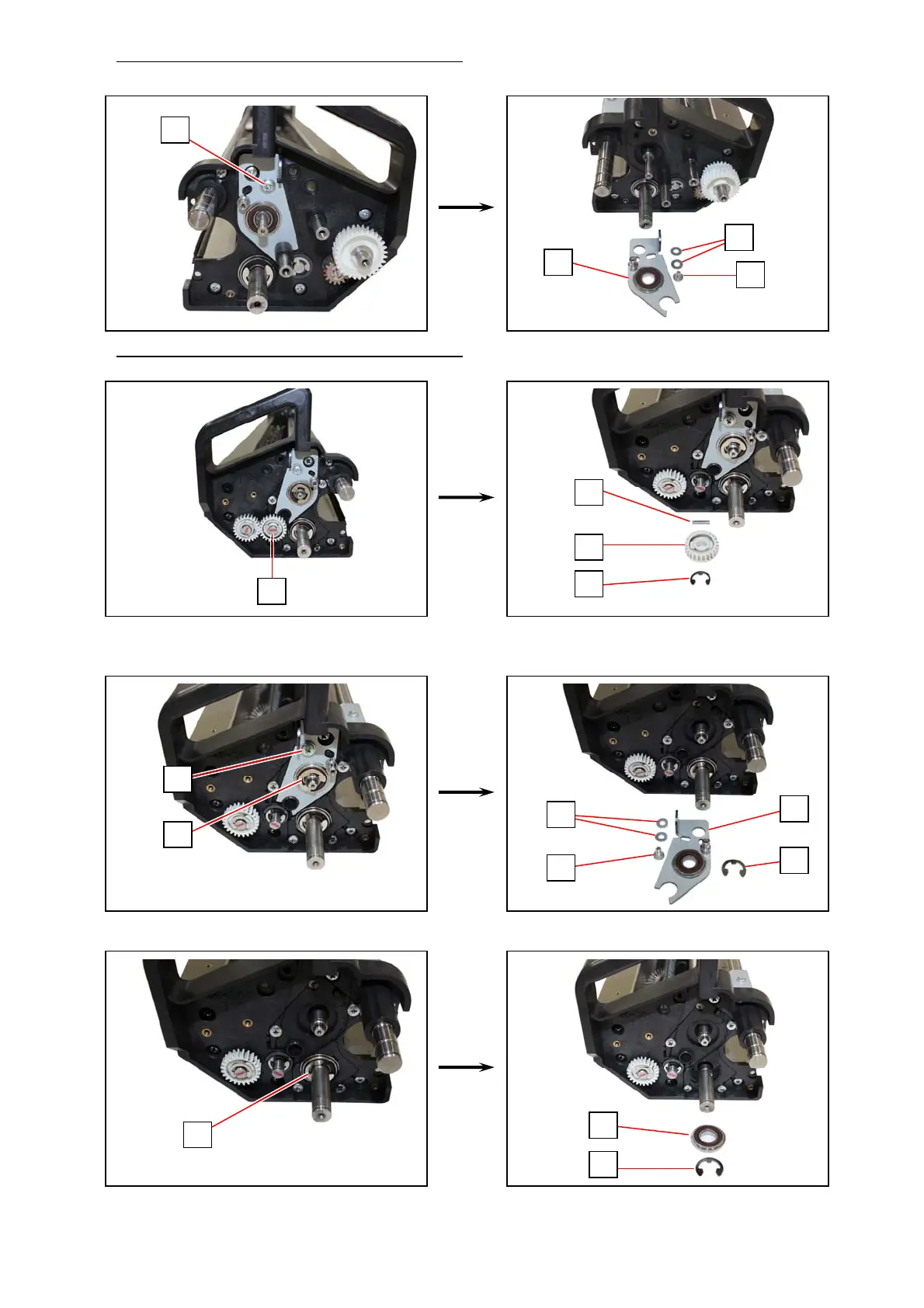

39. On the machine right side (left hand grip side)
, remove 1 screw (63: M4x8) to remove the Flat
Washer(s) (64: M4) and the Plate 17 Assy (65).
40. On the machine left side (right hand grip side)
, remove 1 Retaining Ring-E (66: E7) to remove
the Gear 16T (67) and the Parallel Pin (68: 3x14).
41. Remove 1 Retaining Ring-E (69: E9) and 1 screw (70: M4x8).
Remove the Flat Washer(s) (71: M4) and the Plate 18 Assy (72).
42. Remove 1 Retaining Ring-E (73: E10) to remove the Bearing (74).
63
63
64
65
66
66
67
68
70
69
69
70
71
72
73
73
74
