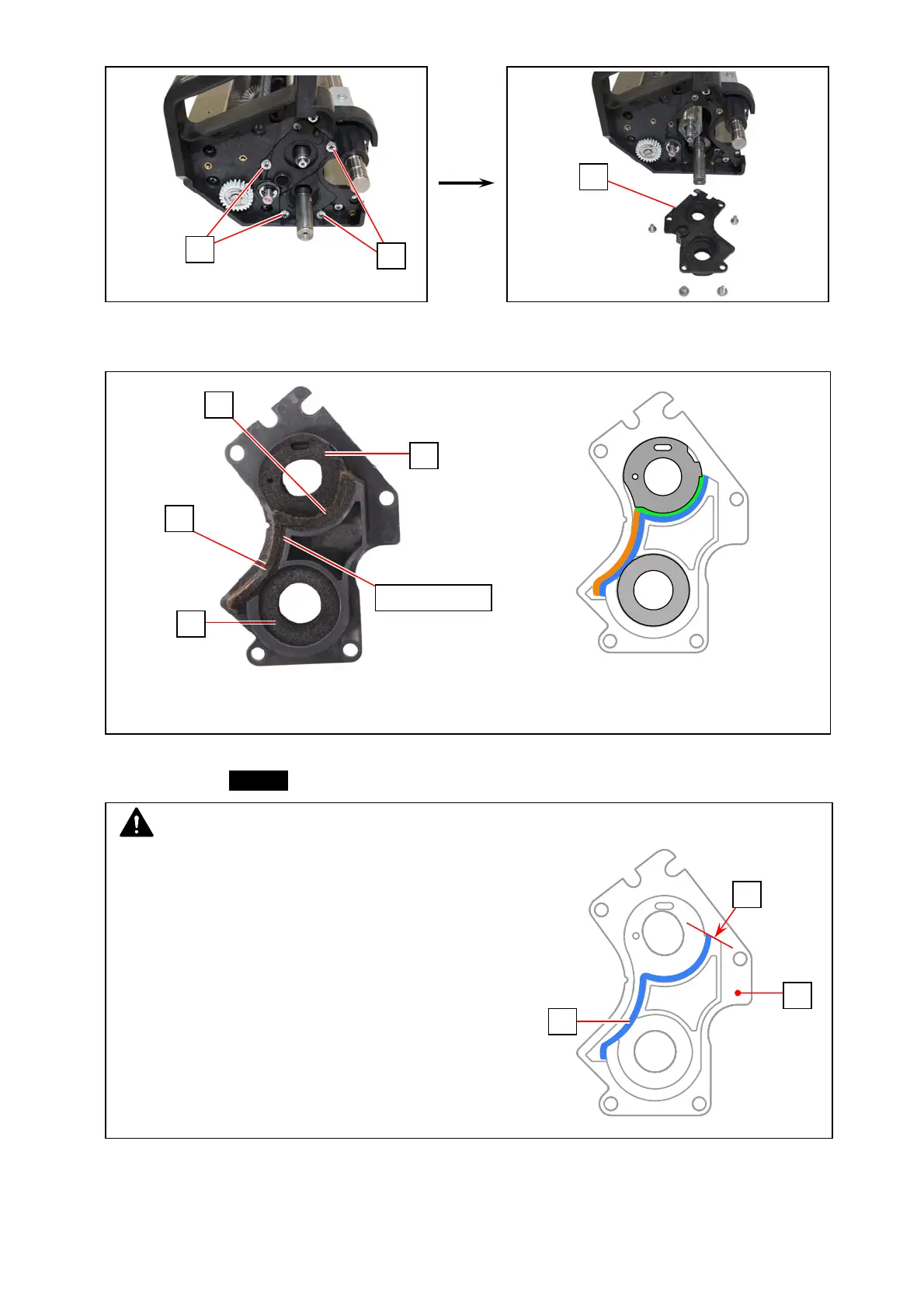

43. Remove 4 screws (75: M4x6) to remove the Side Plate 16 (76).
44. Remove the Seal 27 (77), the Seal 28 (78) (79), the Seal 29 (80) and the Seal 30 (81) from the
inner side of the Side Plate 16.
45. Completely clean glue residue off the surface where the Seals have been applied.
Apply the new Seal 27 (82) to the Side Plate 16 (76).
75
75
76
Seal 28 (78) (79) are the same part.
For clarification in the later steps, the different Item No. is given.
77: lower layer
80
78
79
81
NOTE
Align one end of the Seal 27 (82) with the line (A).
The Seal 27 (82) should be completely applied along
the rib face of Side Plate 16 (76) without gap under the
Seal 27 (82).
82
76
A
To Next Page
