KIP 700m - Page 248

K117sm5e9
5-126

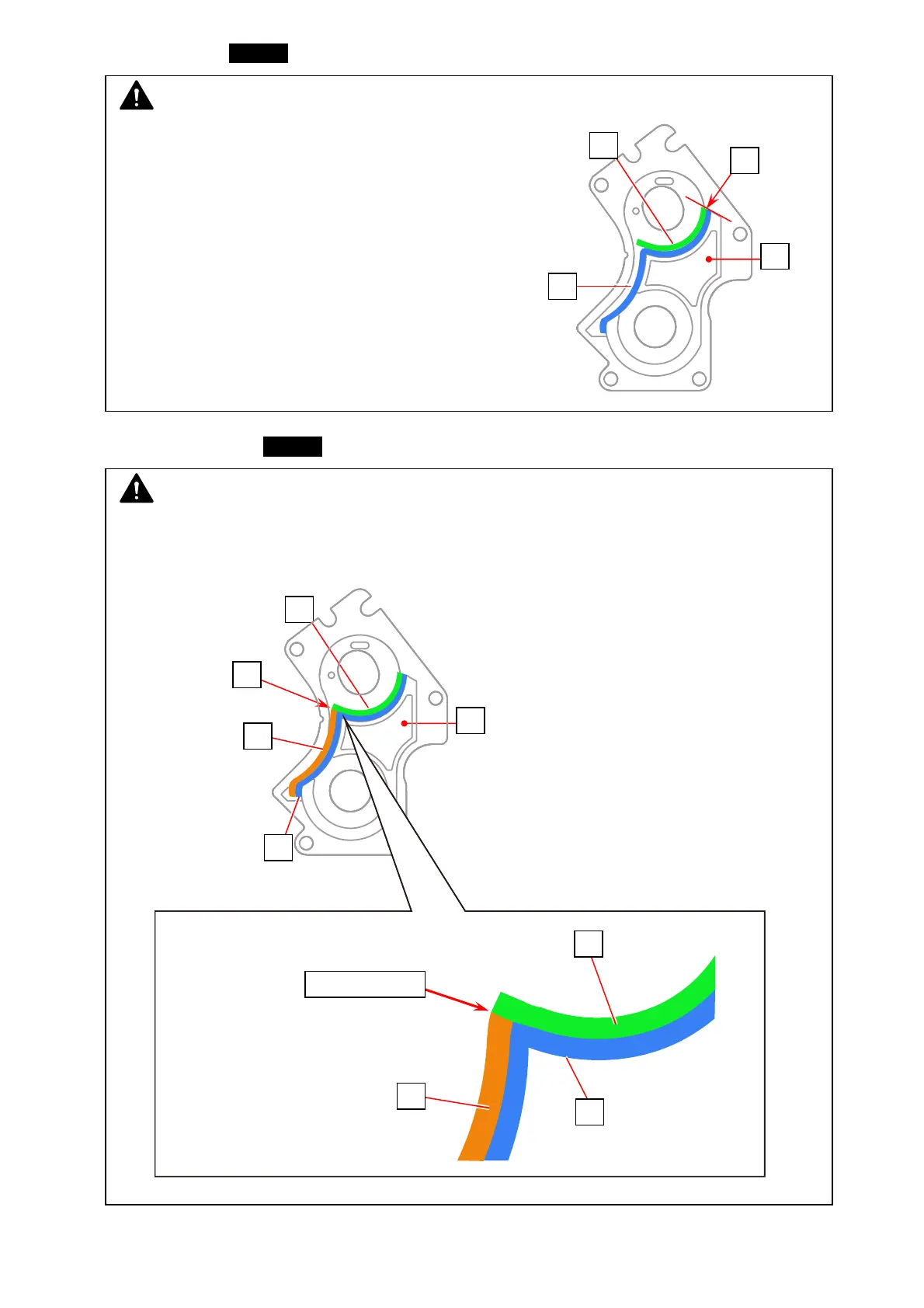

46. Apply the new Seal 28 (83) to the Side Plate 16 (76).
47. Apply another new Seal 28 (84) to the Side Plate 16 (76).
NOTE
Align one end of the Seal 28 (84) with the line (B).
The Seal 28 (84) should be completely applied along the Seal 27 (82).
NOTE
Align one end of the Seal 28 (83) with the line (A).
The Seal 28 (83) should be completely applied along
the Seal 27 (82).
82
76
A
83
76
B
83
84
82
No gap at joint
84
82
83
