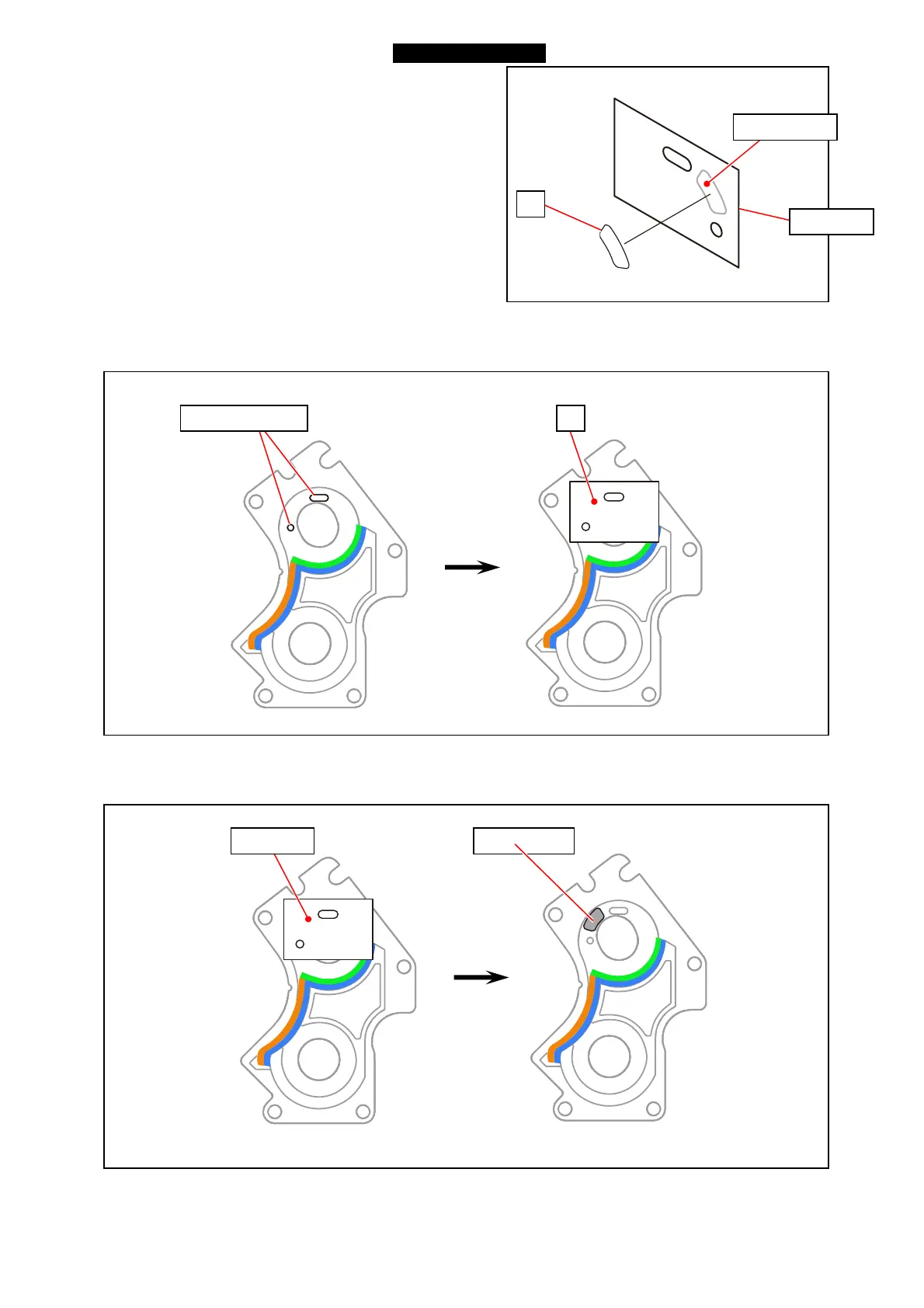

48. Peel off the release paper (C) of the Double-sided Tape (85).
49. Apply the Double-sided Tape (85) on the Side Plate 16 so that the glue part faces the Side
Plate 16, noting the positioning bosses.
50. Peel off the carrier of the Double-sided Tape (85) so that the glue part should stay on the Side
Plate 16.
85: carrier 85: glue part
C
85: glue part
85: carrier
positioning boss 85
