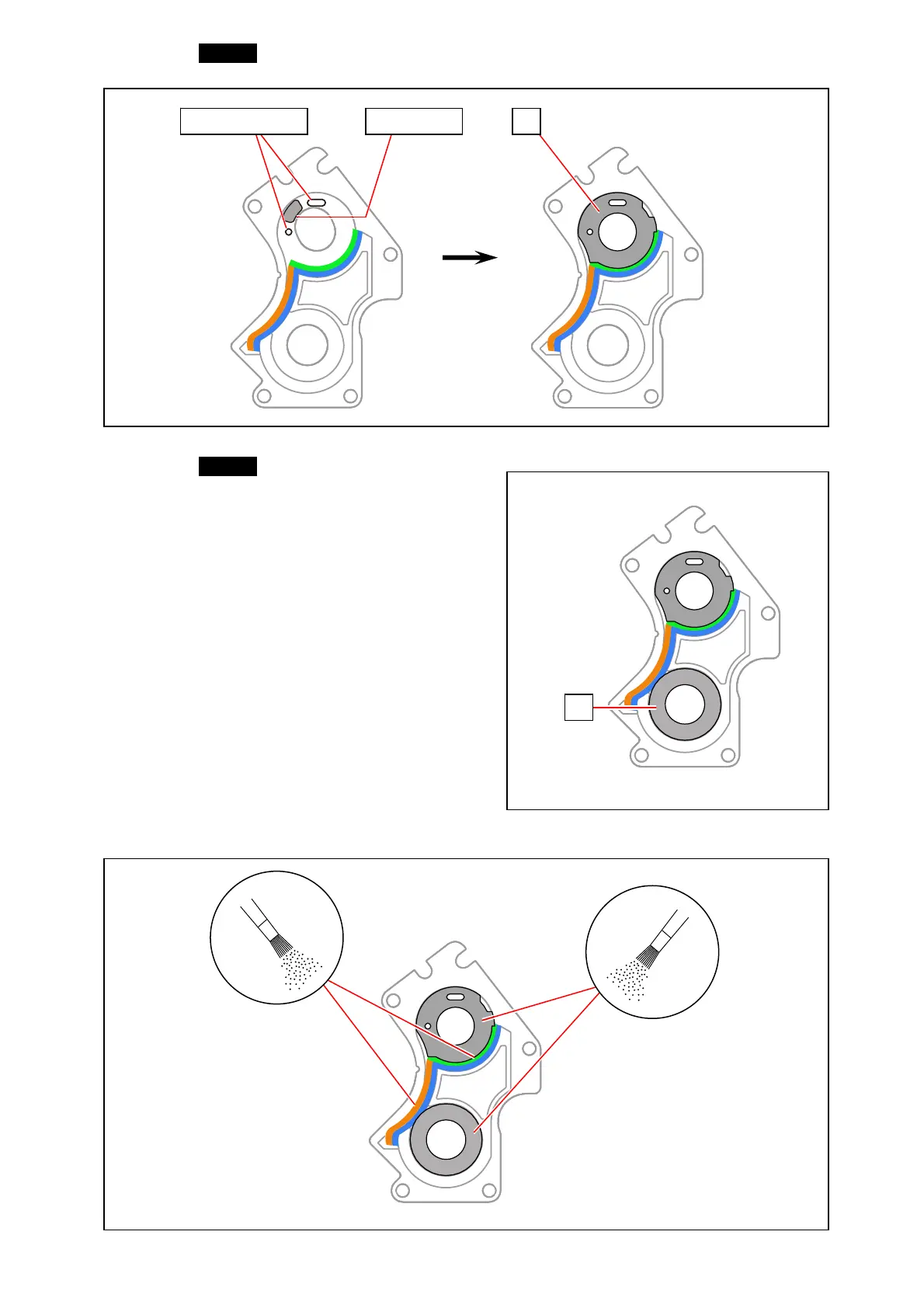

51. Attach the Seal 29 (86) to the Side Plate 16 so that it fixes by the glue part (85), noting the
positioning bosses.
52. Attach the Seal 30 (87) to the Side Plate 16.
53. Rub the toner powder on the exposed surface of all the Seals.
positioning boss 8685: glue part
87
