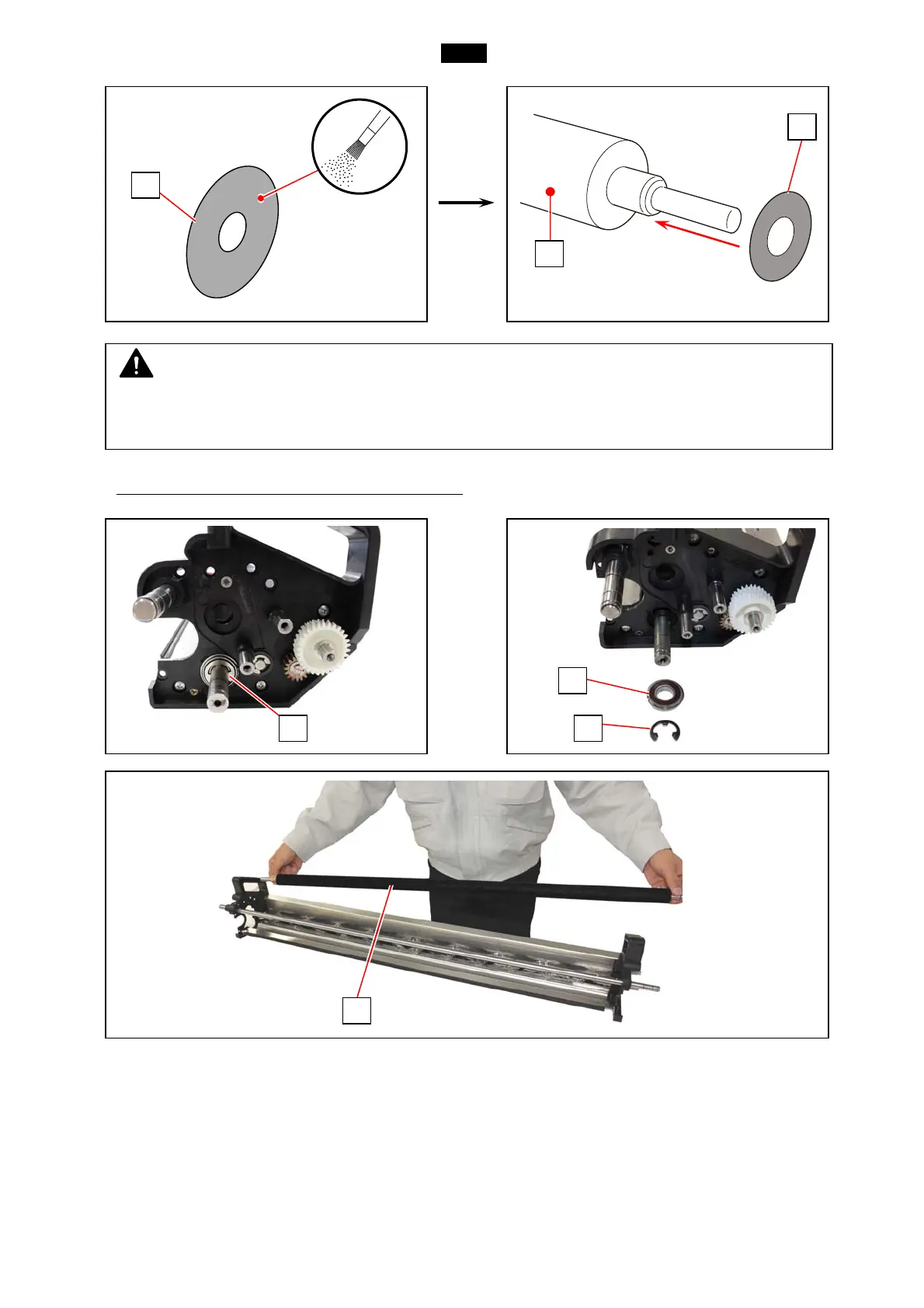

57. Rub the toner powder on both faces of the Sheet (94).
Apply the Sheet (94) to each end face of the Regulation Roller (92).
58. On the machine right side (left hand grip side)
, remove 1 Retaining Ring-E (95: E10) to remove
the Bearing (96) and the Toner Supply Roller (97).
NOTE
Do not install the Regulation Roller at this time. It will be installed to the Developer Assy in
the later step 62.
92
94
94
95 95
96
97
To Next Page
