5-133

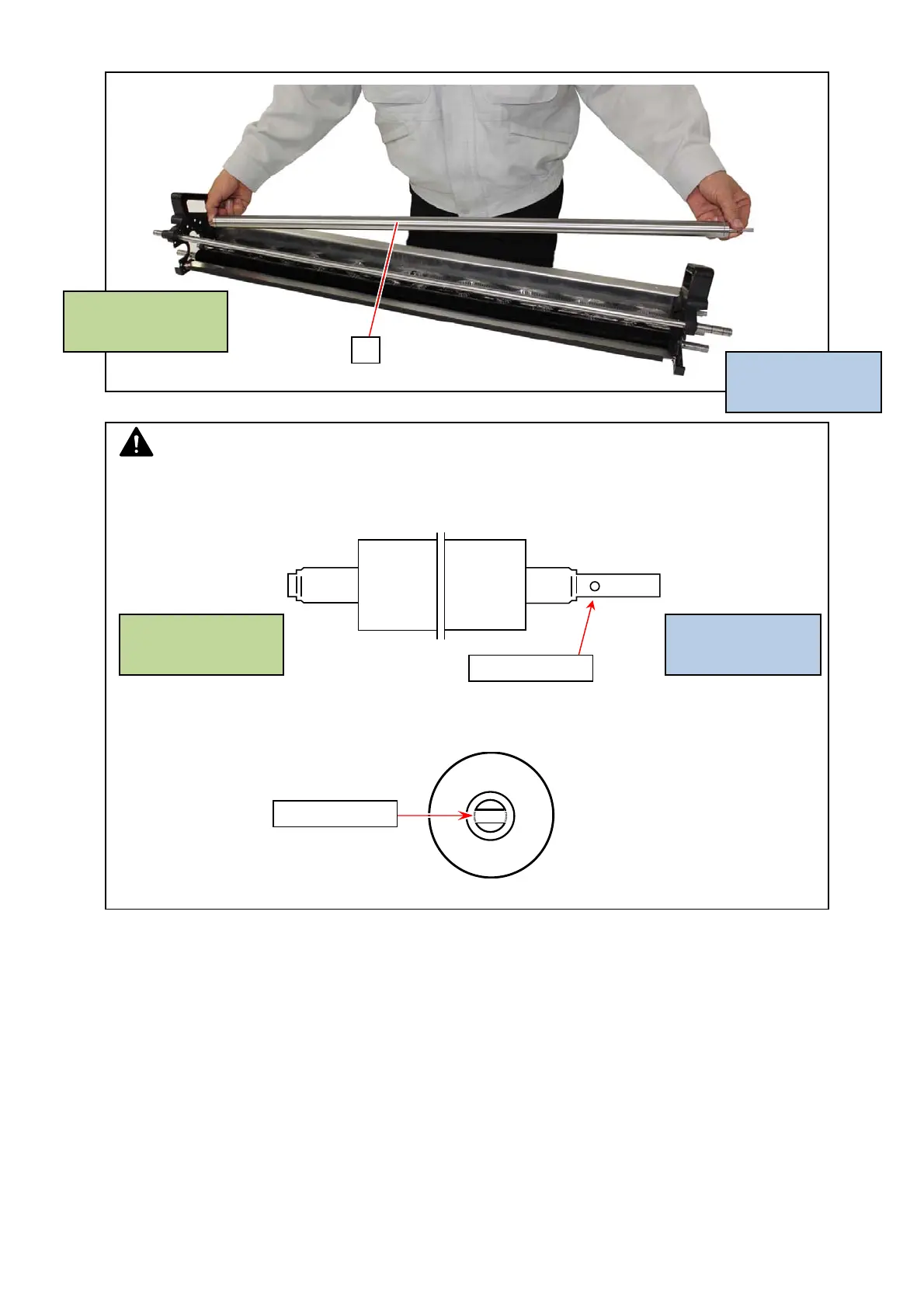

62. Install the new Regulation Roller (92) to the Developer Assy.
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
92
NOTE
(1) Mind the direction of the roller when you return it to the Developer Assy.
The longer side should be placed to the machine right side (left hand grip side).
(2) The penetrating holes for the Parallel Pins should be leveled for ease of later work.
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
penetrating hole
penetrating hole
