5-132

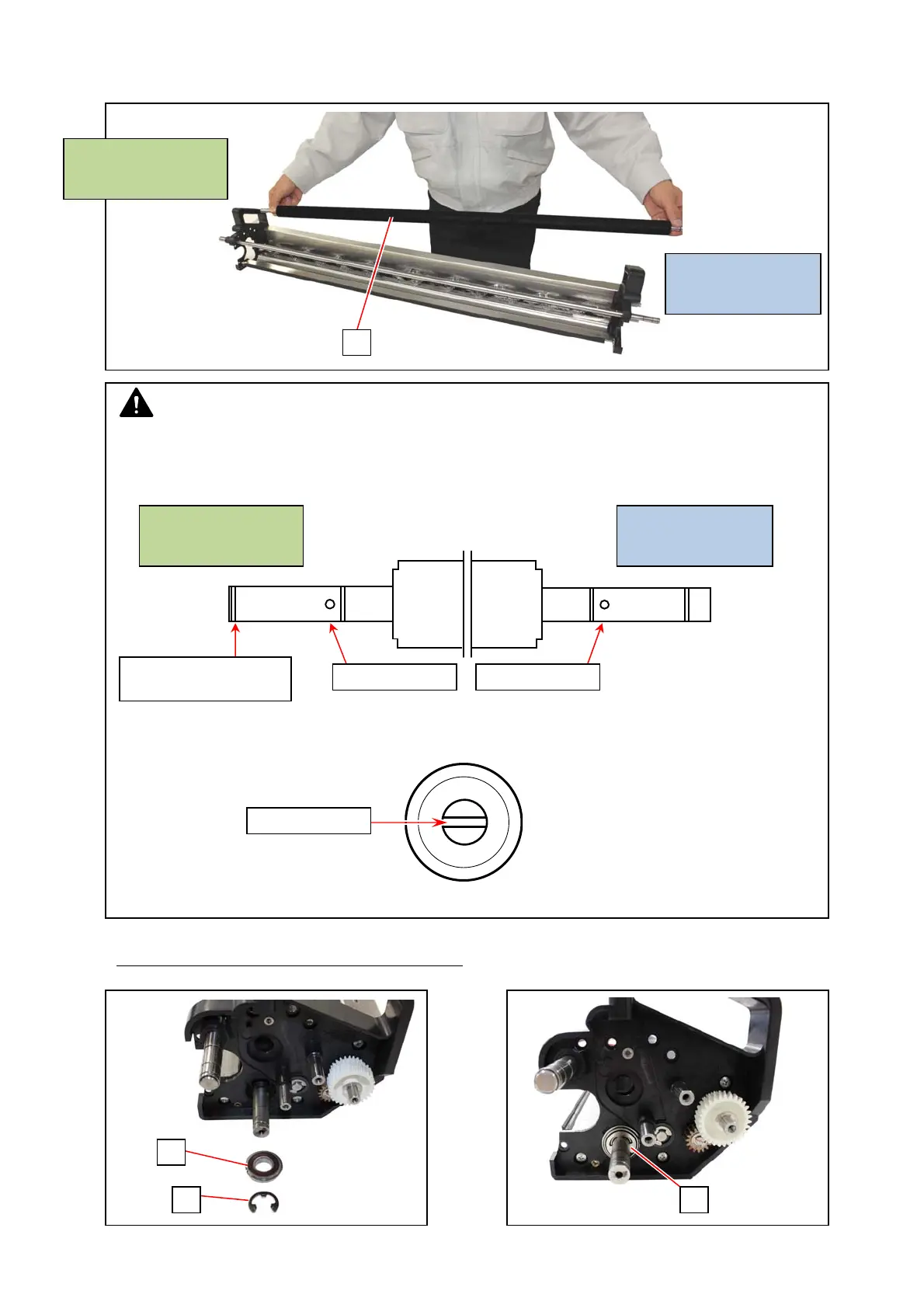

60. All the Seals on the Side Plate 16 and the Side Plate 18 should be replaced.
Return the Toner Supply Roller (97) to the Developer Assy.
61. On the machine right side (left hand grip side)
, return the Bearing (96) and 1 Retaining Ring-E
(95: E10) to the Toner Supply Roller shaft.
97
NOTE
(1) Mind the direction of the roller when you return it to the Developer Assy.
The shaft with a groove at the far end on it should be placed to the machine left side
(right hand grip side).
(2) The penetrating holes for the Parallel Pins should be leveled for ease of later work.
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
machine left side
= right hand grip side
= Bias Electrode side
machine right side
= left hand grip side
= Drive side
Groove for Retaining
Ring-E at the far end
penetrating hole penetrating hole
95
95
96
penetrating hole
To Next Page
