KIP 700m - Page 257

K117sm5e9
5-135

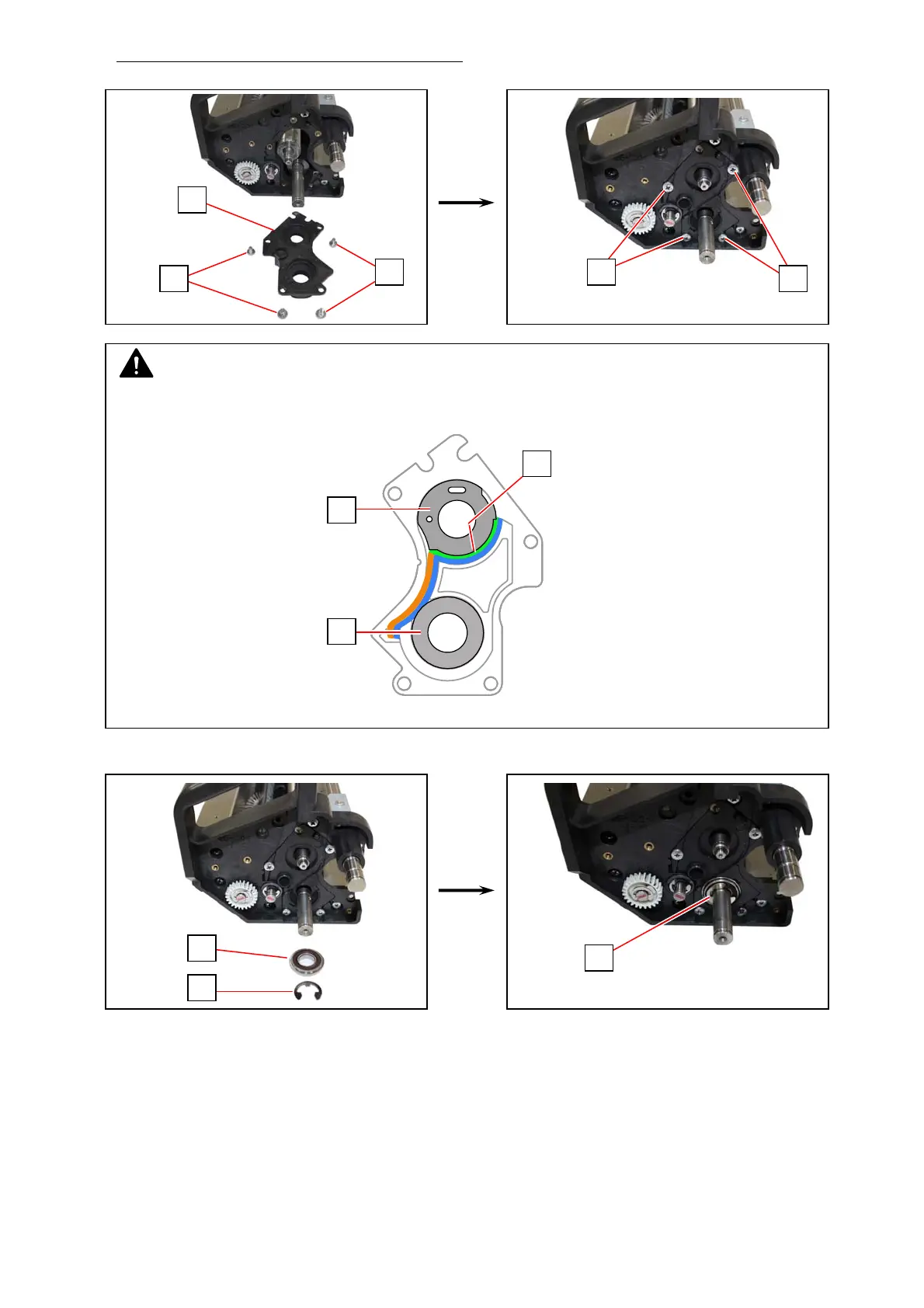

64. On the machine left side (right hand grip side)
, return the Side Plate 16 (76) with 4 screws (75:
M4x6).
65. Return the Bearing (74) and 1 Retaining Ring-E (73: E10) to the Toner Supply Roller shaft.
75
75
76
75
75
NOTE
At this step, the Seal 28 (83), the Seal 29 (86) and the Seal 30 (87) should not flip or be
displaced.
86
87
83
73
73
74
