5-136

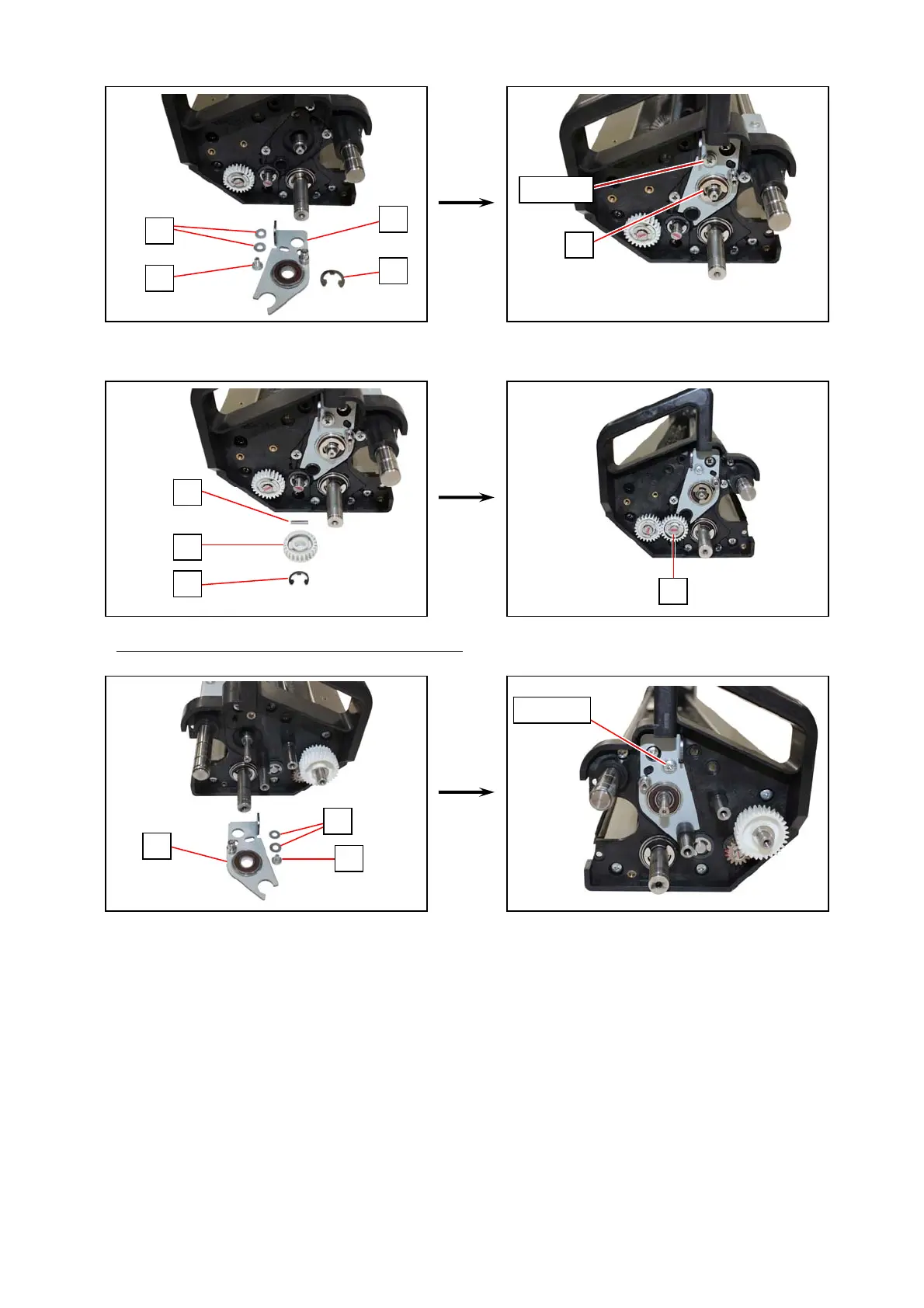

66. Return the Plate 18 Assy (72), 1 Retaining Ring-E (69: E9) and the Flat Washer(s) (71: M4).
At this time, loosely Fix 1 screw (70: M4x8).
67. Insert the Parallel Pin (68: 3x14) to the toner agitator shaft.
Return the Gear 16T (67) and 1 Retaining Ring-E (66: E7).
68. On the machine right side (left hand grip side)
, return the Plate 17 Assy (65) and the Flat
Washer(s) (64: M4). At this time, loosely fix 1 screw (63: M4x8).
63: loose
66
70: loose
69
69
70
71
72
66
67
68
63
64
65
To Next Page
