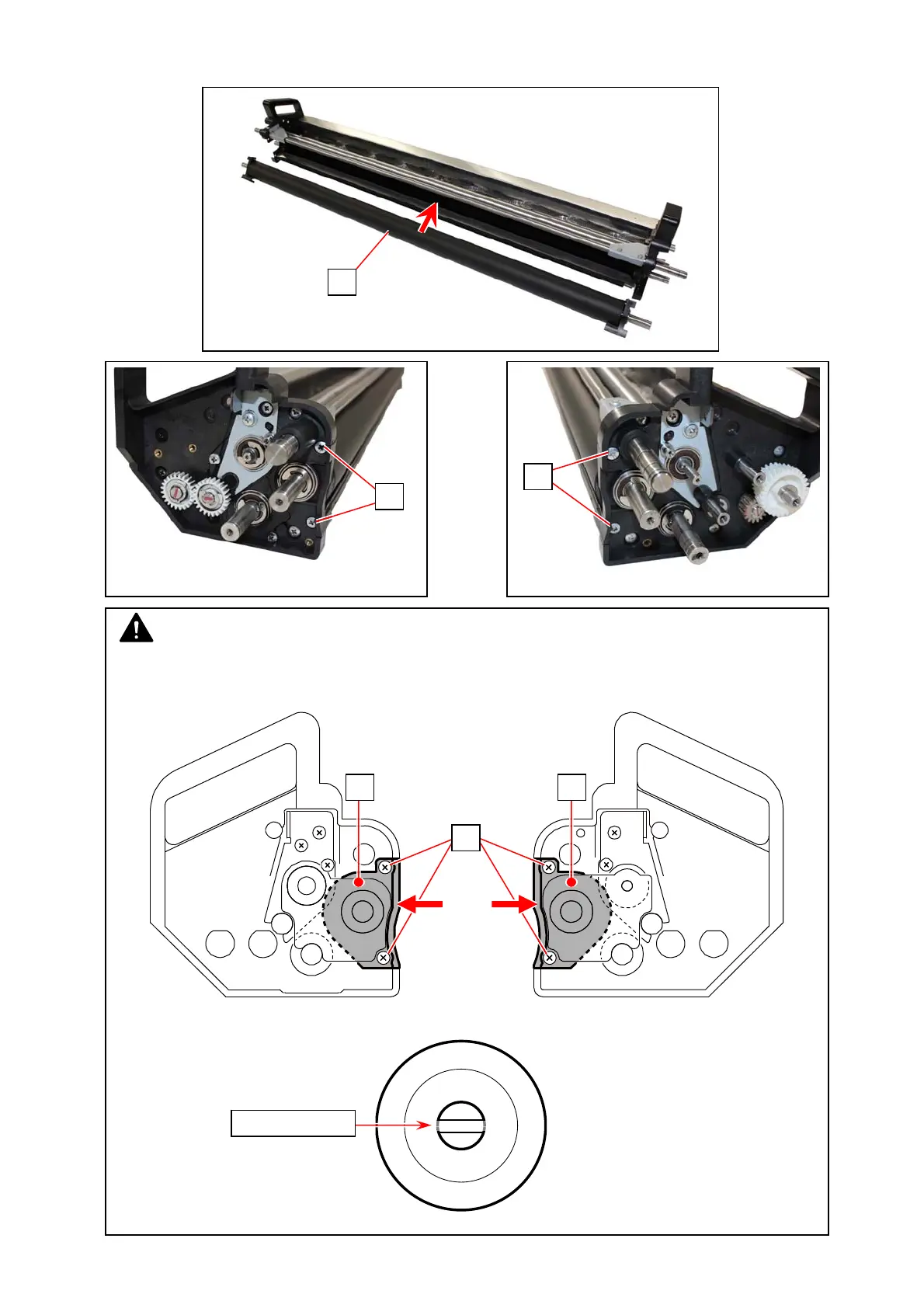

69. Install the new Developer Roller (60) and fix it with 4 screws (52: M4x6), taking care of the
Note column below.
60
52
52
NOTE
(1) Tighten the screws (52) with pushing the Side Plate 21 (56) or the Side Plate 19 (57) to
the arrow direction.
(2) The penetrating holes for the Parallel Pins should be leveled for ease of later work.
penetrating hole
56 57
